(02-10) - SLIP CLUTCH (PRIMARY) DRIVE ASSEMBLY (S.N. CFH0046501 THRU CFH0046872)

Запчасти Case IH 8555 (02-10) - SLIP CLUTCH (PRIMARY) DRIVE ASSEMBLY (S.N. CFH0046501 THRU CFH0046872) Driveline

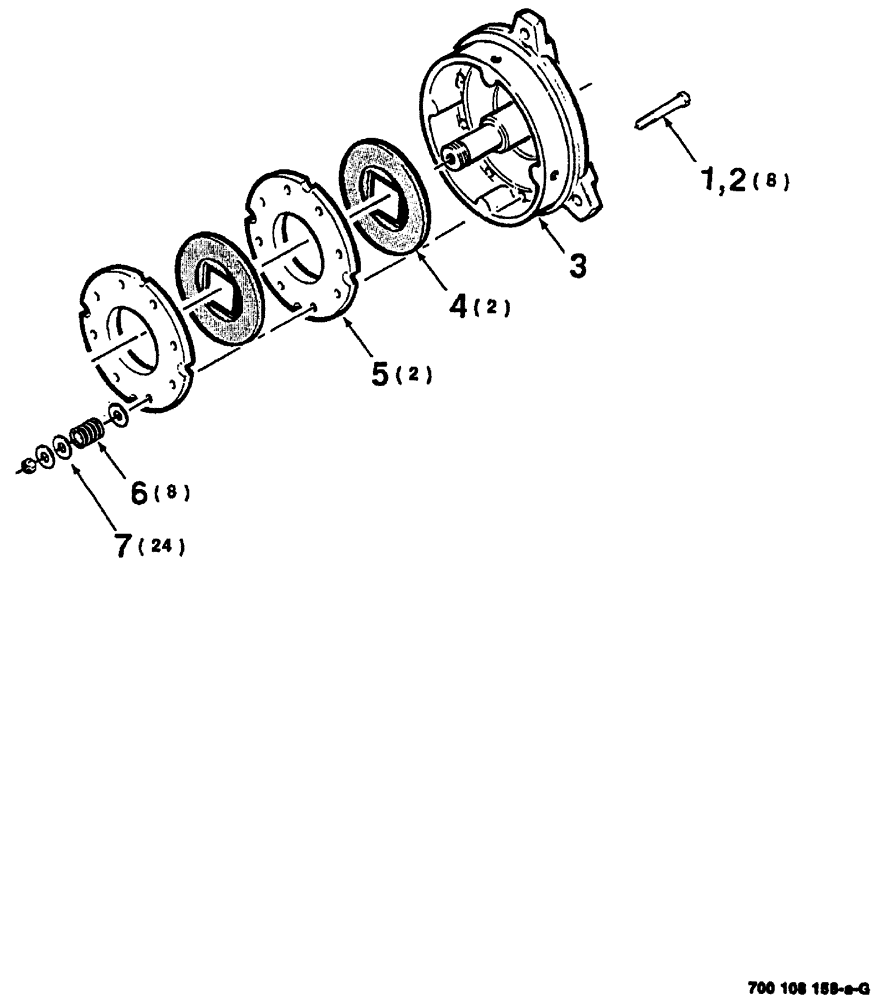

Схема запчастей Case IH 8555 - (02-10) - SLIP CLUTCH (PRIMARY) DRIVE ASSEMBLY (S.N. CFH0046501 THRU CFH0046872) Driveline
1
2
6
4
3
5
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

8шт.

2

231-4116

NUT,3/8"-16, GB

lock hex top, 3/8-16, GR/B

8шт.

3

700108160

HOUSING

clutch

1шт.

4

6522874

DISC,104.8mm ID x 174.62mm OD x 6.35mm Thk

friction

2шт.

5

6522866

CLUTCH PLATE

2шт.

6

700707442

SPRING

compression

8шт.

7

495-21044

WASHER,3/8"

24шт.
