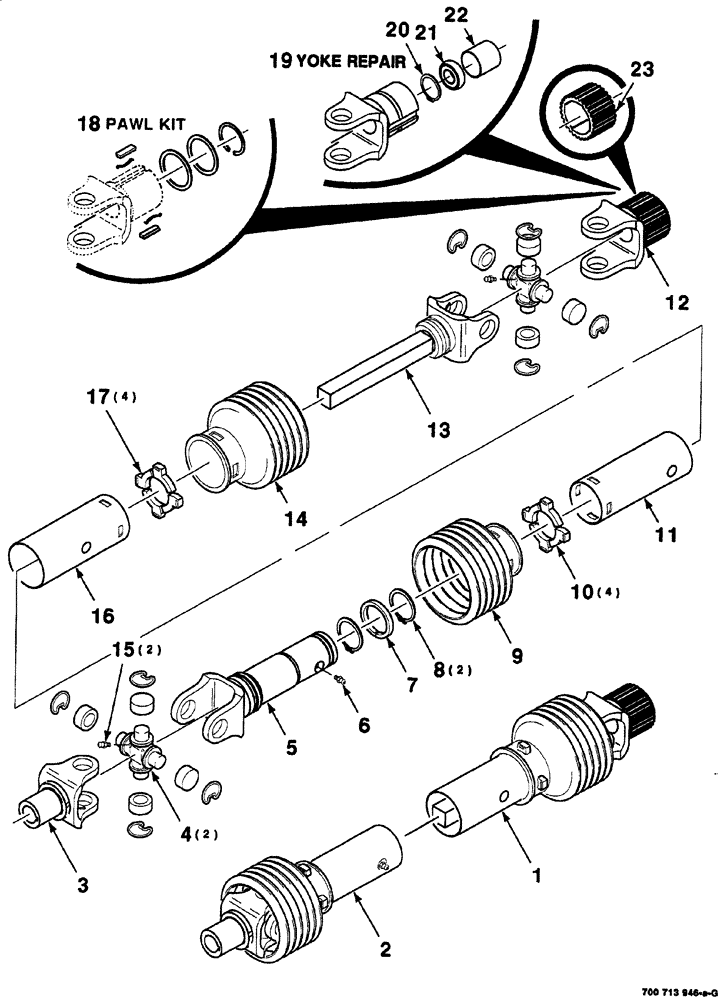

Запчасти Case IH 8555 (02-08) - IMPLEMENT DRIVELINE ASSEMBLY (NEAPCO) (S.N. CFH0046873 AND LATER) Driveline

1

700713992

JOINT

output half

1шт.

2

700708995

JOINT

input half

1шт.

3

700704385

YOKE

YOKE

1шт.

4

133137C91

KIT

cross and bearing

2шт.

5

700704382

FORK

YOKE tube and sleeve

1шт.

6

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

7

700704377

NYLON BEARING

1шт.

8

700710864

RING

retaining

2шт.

9

700709021

SHIELD

bell

1шт.

10

700709017

BEARING COVER

shield

4шт.

11

700709020

SHIELD

inner

1шт.

12

700713993

CLUTCH

ASSEMBLY, Includes: Ref. 19 and 23

1шт.

13

700704383

FORK

YOKE and SHAFT

1шт.

14

700709016

SHIELD

bell

1шт.

15

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

16

700709018

SHIELD

outer

1шт.

17

700709023

BEARING COVER

bearing

4шт.

18

700713994

PAWL

KIT, Includes: 1 ring retainer, 2 pawls, springs and thrust washers

1шт.

19

700714045

YOKE

UNIVERSAL JOINT YOKE repair, Includes: Ref. 20 - 22

1шт.

Part of Clutch Assembly P/N 700713993

1шт.

20

376219R1

SNAP RING,1.653, Int, #165

Ring, Snap, 1.653", Int, #165

1шт.

Part of Yoke Repair P/N 700714045

1шт.

21

663625R91

BALL BEARING

1шт.

Part of Yoke Repair P/N 700714045

1шт.

22

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

1шт.

Part of Yoke Repair P/N 700714045

1шт.

23

700714046

COLLAR

1шт.

Part of Clutch Assembly P/N 700713993

1шт.
