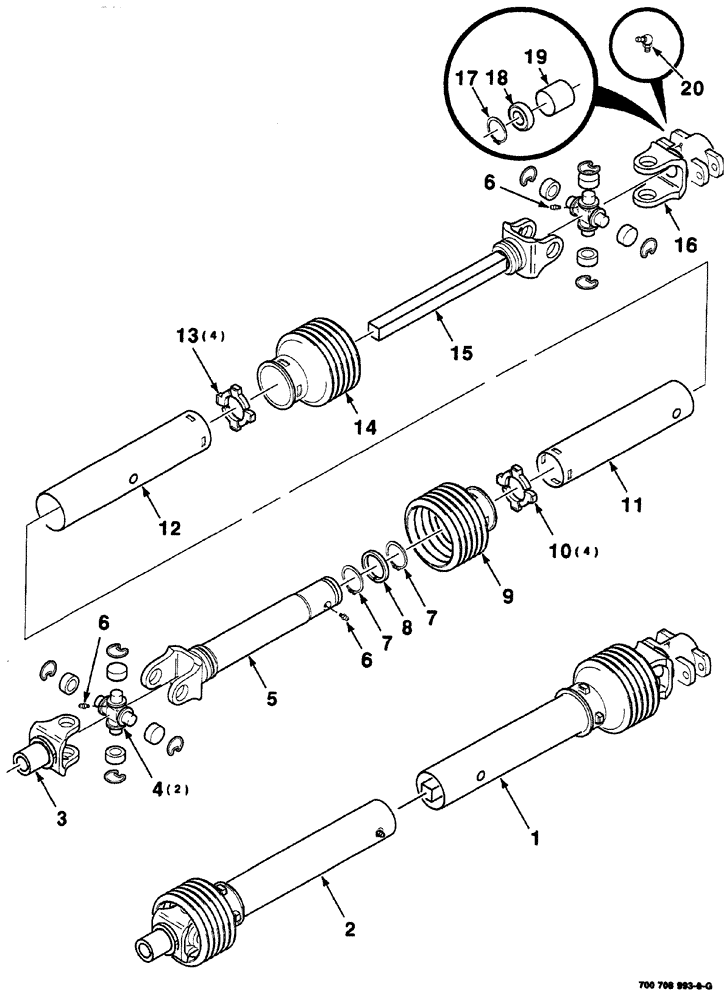

Запчасти Case IH 8555 (02-06) - IMPLEMENT DRIVELINE (INTERMEDIATE) ASSEMBLY (PLASTIC SHIELDS) (S.N. CFH0046501 THRU CFH0046872) Driveline

1

700709019

JOINT

U ASSEMBLY, tractor half

1шт.

2

700708995

JOINT

U ASSEMBLY, implement half

1шт.

3

700704385

YOKE

YOKE keyed

1шт.

4

133137C91

KIT

journal repair

2шт.

5

700704382

FORK

YOKE and TUBE

1шт.

6

219-8

LUBE NIPPLE,1/4" - 28 NPTF

3шт.

7

700710864

RING

retaining

2шт.

8

700704377

NYLON BEARING

center

1шт.

9

700709021

SHIELD

bell tube, inner

1шт.

10

700709023

BEARING COVER

bearing insert, inner

4шт.

11

700709020

SHIELD

tube, inner

1шт.

12

700709018

SHIELD

tube, outer

1шт.

13

700709017

BEARING COVER

insert shield, outer

4шт.

14

700709016

SHIELD

bell tube, outer

1шт.

15

700704383

FORK

YOKE and SHAFT

1шт.

16

700705823

ASSEMBLY

YOKE clutch, Includes: Ref. 17 - 20

1шт.

17

376219R1

SNAP RING,1.653, Int, #165

Ring, Snap, 1.653", Int, #165

1шт.

Part of Yoke Clutch P/N 700705823

1шт.

18

663625R91

BALL BEARING

ball

1шт.

Part of Yoke Clutch P/N 700705823

1шт.

19

7852114

BUSHING,34.9mm ID x 38.1mm OD x 33.27mm L

bronze

1шт.

Part of Yoke Clutch P/N 700705823

1шт.

20

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

Zerk, 45°

1шт.

Part of Yoke Clutch P/N 700705823

1шт.
