Запчасти Case IH 8555 (02-04) - IMPLEMENT DRIVELINE ASSEMBLY (PLASTIC SHIELDS) Driveline

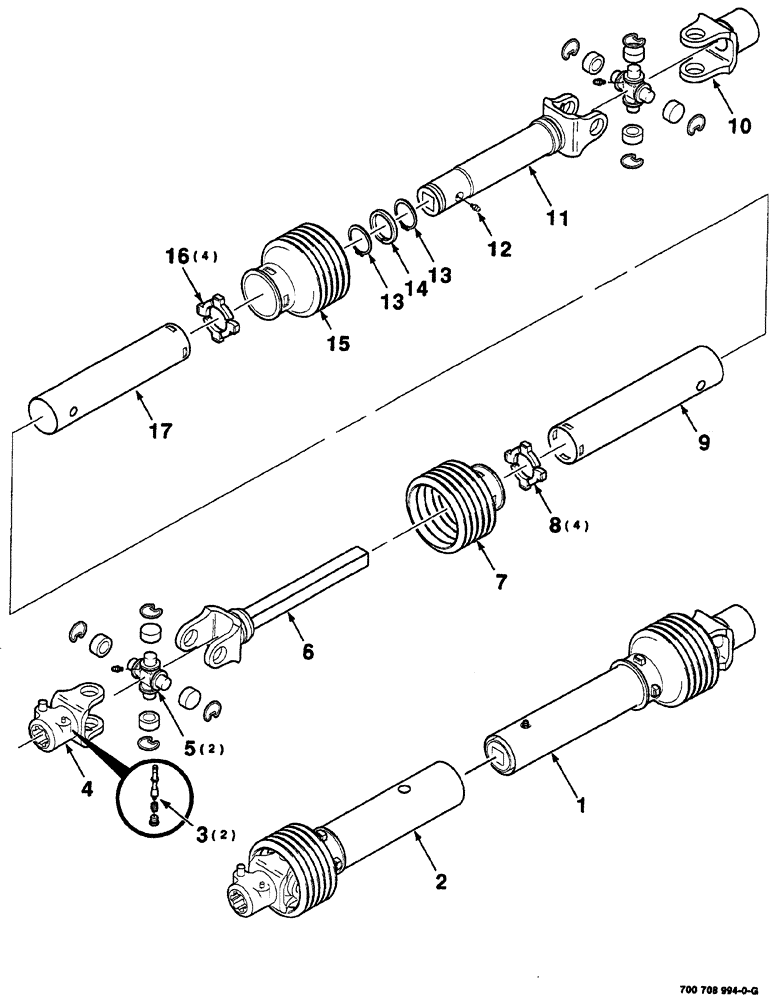

Схема запчастей Case IH 8555 - (02-04) - IMPLEMENT DRIVELINE ASSEMBLY (PLASTIC SHIELDS) Driveline
2
8
6
1
12
4
3
13
17
14
10
15
7
11
16
9
13
5

Артикул

Название

Примечание

Количество

1

700708995

JOINT

U ASSEMBLY, inplement half

1шт.

2

700708994

JOINT

U ASSEMBLY, tractor half

1шт.

3

237924A1

PACKAGE

KIT pin, QD

2шт.

4

700708524

FORK

YOKE ASSEMBLY, QD

1шт.

5

133137C91

KIT

journal repair

2шт.

6

700704389

YOKE

YOKE and SHAFT

1шт.

7

700709016

SHIELD

bell tube, outer

1шт.

8

700709017

BEARING COVER

insert shield, outer

4шт.

9

700709015

SHIELD

tube, outer

1шт.

10

700704385

YOKE

YOKE keyed, implement

1шт.

11

700704382

FORK

YOKE and TUBE

1шт.

12

219-8

LUBE NIPPLE,1/4" - 28 NPTF

1шт.

13

700710864

RING

retaining

2шт.

14

700704377

NYLON BEARING

center

1шт.

15

700709021

SHIELD

bell tube, inner

1шт.

16

700709023

BEARING COVER

BEARING insert, inner

4шт.

17

700709020

SHIELD

tube, inner

1шт.

Выбрано товаров: 17
