Запчасти Case IH 8555 (02-02) - TONGUE AND DRIVE (PRIMARY) ASSEMBLY Driveline

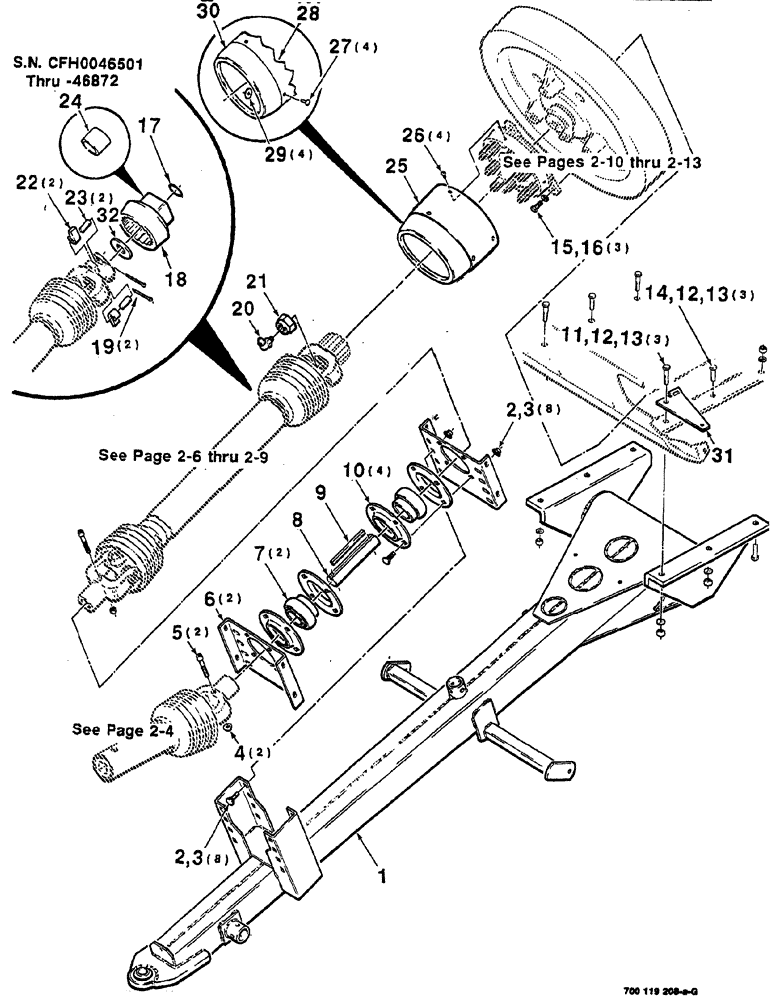

Схема запчастей Case IH 8555 - (02-02) - TONGUE AND DRIVE (PRIMARY) ASSEMBLY Driveline
2
23
5
4
12
26
14
7
21
17
31
13
6
16
20
11
8
19
12
27
30
24
25
15
1
28
3
9
2
13
3
22
10
32
18
29

Артикул

Название

Примечание

Количество

1

700108378

TOW BAR

TONGUE, WA

1шт.

2

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT round head, square neck, 1/2-13 x 1

16шт.

3

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

16шт.

4

232-5316

FLANGE NUT,Flg, 3/8"-16

lock hex flange top, 3/8-16, GR/G

2шт.

5

61-33848

HEX SOC SCREW,3/8"-16 x 3"

SCREW cap, hex socket head, 3/8-16 x 3, SPL

2шт.

6

700108525

SUPPORT

bearing

2шт.

7

700704263

SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm

spherical

2шт.

8

700108507

SHAFT

intermediate

1шт.

9

700108529

KEY

5/16 x 5.315

1шт.

10

714360

FLANGED BEARING

flange

4шт.

11

413-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 5

3шт.

12

492-11062

BEARING WASHER,5/8"

6шт.

13

425-1010

NUT,5/8"-11, G5

6шт.

14

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

SCREW hex cap, 5/8-11 x 1-3/4

3шт.

15

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

3шт.

16

80679

LOCK WASHER,1/20.507 CST ZND

3шт.

17

238-6225

O-RING,0.139" Thk x 1.859" ID, -225, Cl 6, 90 Duro

1шт.

18

700124095

HOUSING

clutch

1шт.

19

432-828

COTTER PIN,1/8" x 1 3/4"

2шт.

20

219-36

LUBE NIPPLE,45 Degree Elbow, 1/8" - 27 NPTF

Zerk, 1/8-27 x 90°

1шт.

21

131-73

NUT,3/4"-16

light hex stop, 3/4-16, Serial Range: CFH-0046501-CFH-0046872

1шт.

Part 131-73 and 231-46112 are not interchangeable

1шт.

231-46112

LOCK NUT,3/4"-16, GB

lock hex top, 3/4-16, Start Serial: CFH-0046873

1шт.

Part 131-73 and 231-46112 are not interchangeable

1шт.

22

6522924

CLUTCH

pawl

2шт.

23

6522916

PIN

pawl

2шт.

24

700122631

BRONZE BUSHING

bronze

1шт.

25

700119204

SHIELD

ASSEMBLY, Includes: Ref. 27 - 30, Serial Range: CFH-0046501-CFH-0046872

1шт.

Parts 700119204 and 700130425 are not interchangeable.

1шт.

700130425

SHIELD

ASSEMBLY, Start Serial: CFH-0046873

1шт.

Parts 700119204 and 700130425 are not interchangeable.

1шт.

26

70417

BOLT

SCREW cross recess pan head machine, 1/4-20 x 1/2

4шт.

27

64642

RIVET

pop

4шт.

Part of Shield Assembly P/N 700119204

1шт.

28

700119205

SHIELD

clutch, Serial Range: CFH-0046501-CFH-0046872

1шт.

Part of Shield Assembly P/N 700119204

1шт.

Parts 700119205 and 700130426 are not interchangeable.

1шт.

700130426

SHIELD

clutch, Serial Range: CFH-0046501-CFH-0046872

1шт.

Part of Shield Assembly P/N 700119204

1шт.

Parts 700119205 and 700130426 are not interchangeable.

1шт.

29

700703962

WASHER

4шт.

Part of Shield Assembly P/N 700119204

1шт.

30

700108691

CAP

shield

1шт.

Part of Shield Assembly P/N 700119204

1шт.

31

700108427

SUPPORT

1шт.

32

740522

WASHER

1шт.

Выбрано товаров: 46
