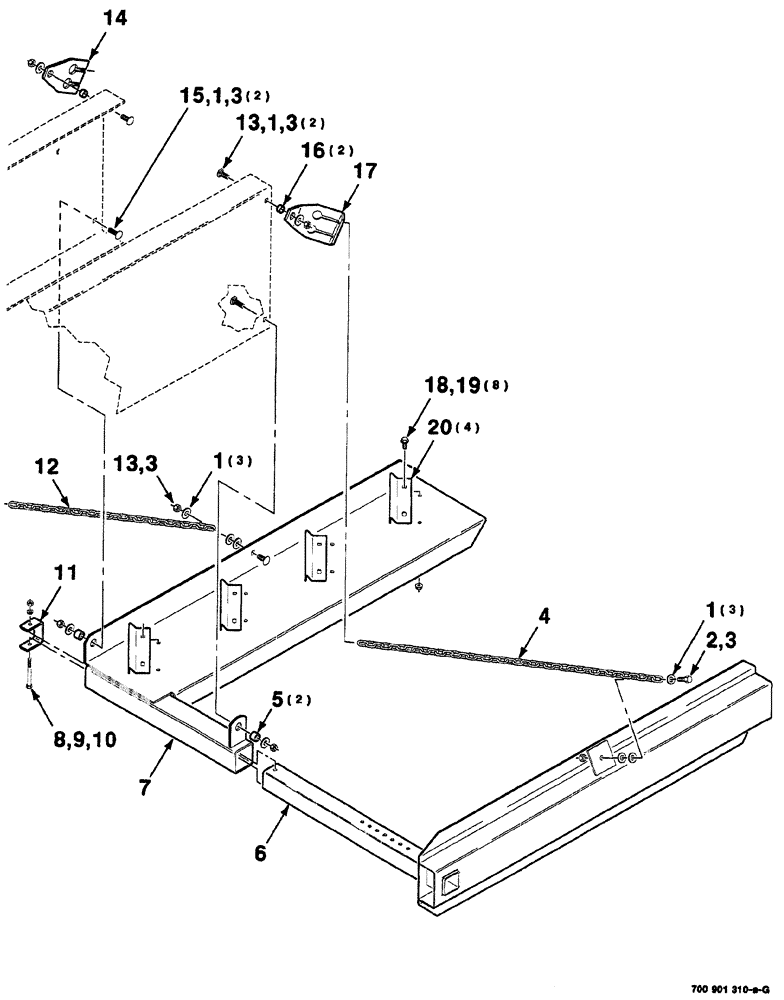

Запчасти Case IH 8555 (09-18) - BALE CHUTE QUARTER TURN KIT, HK50391, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

HK50391

EXTENSION

KIT bale chute quarter turn, complete

1шт.

1

495-21044

WASHER,3/8"

10шт.

2

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

3

230-4216

LOCK NUT,3/8"-16, GA

Center

6шт.

4

6450183

CHAIN (AG)

chute, left, 36" long

1шт.

5

6856512

SPACER

2шт.

6

700112628

CHUTE ASSY.

bale, left, WA

1шт.

7

700112635

CHUTE (DOWNWARD)

bale, right, WA

1шт.

8

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

9

492-11031

LOCK WASHER,5/16"

1шт.

10

425-105

NUT,5/16"-18, G5

1шт.

11

700108714

STOP

extension

1шт.

12

6559876

CHAIN (AG)

chute, right, 25" long

1шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3шт.

14

6859102

BRACKET

chain, right

1шт.

15

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

2шт.

16

6475495

BUSHING

SPACER

2шт.

17

6856538

BRACKET

chain, left

1шт.

18

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

8шт.

19

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

8шт.

20

6856520

ANGLE

guide

4шт.
