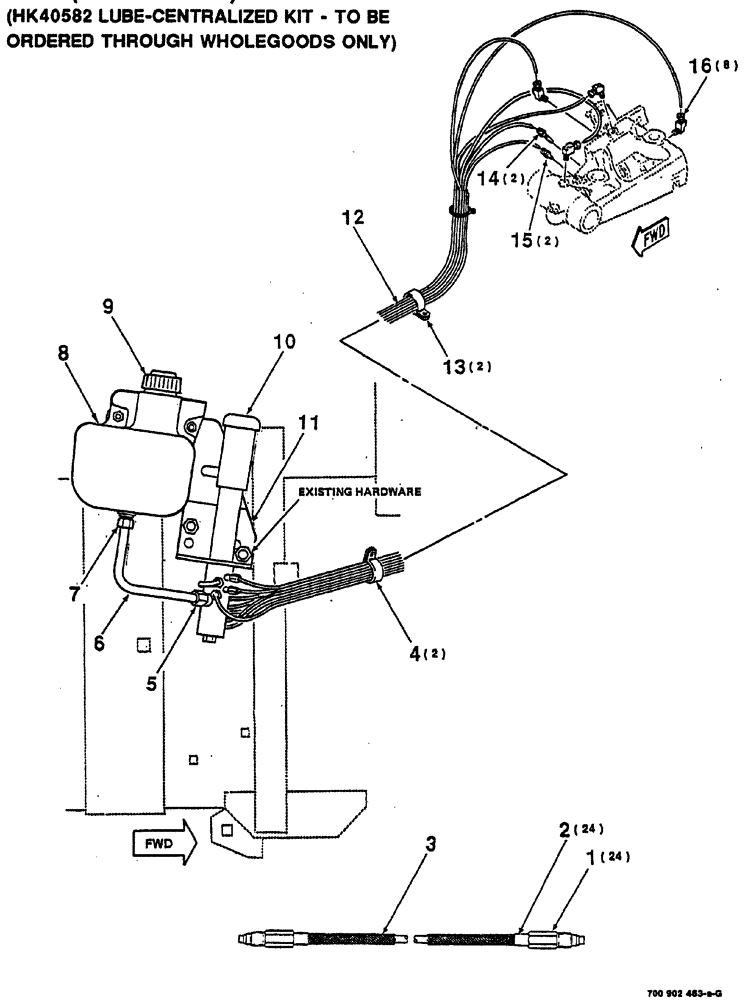

Запчасти Case IH 8555 (09-14) - LUBE (CENTRALIZED) KIT, HK40582, ORDER ONLY THROUGH WHOLEGOODS. Decals & Attachments

HK40582

KIT lube centralized, complete

1шт.

1

700710649

BUSHING

SLEEVE ferrule, 5/16-24

24шт.

2

700710650

SLEEVE

braid

24шт.

3

700710660

TUBE,65" Length

with fittings

1шт.

4

515-23190

CLAMP,3/4", Insul, 3/8" Bolt

Line

2шт.

5

700710651

ADAPTER

pump

1шт.

6

700710653

TUBE,0.375" Diameter, 160 mm Length

poly, 3/8

1шт.

7

700710652

ADAPTER

reservoir

1шт.

8

700710654

RESERVOIR

1шт.

9

700710666

CAP

reservoir

1шт.

10

700710655

PUMP

pulstar

1шт.

11

700710661

PLATE

mounting

1шт.

12

700710656

HARNESS

1шт.

13

515-25127

CLAMP,1/2", Insul, 1/2" Bolt

Line, 1/2 ID x 3/8

2шт.

14

700710646

ADAPTER

ferrule, 5/16-24 x 1/4-28 long

2шт.

15

700710647

ADAPTER

ferrule, 5/16-24 x 1/4-28 short

2шт.

16

700710648

ELBOW

ferrule, 5/16-24 x 1/4-28, 90°

8шт.
