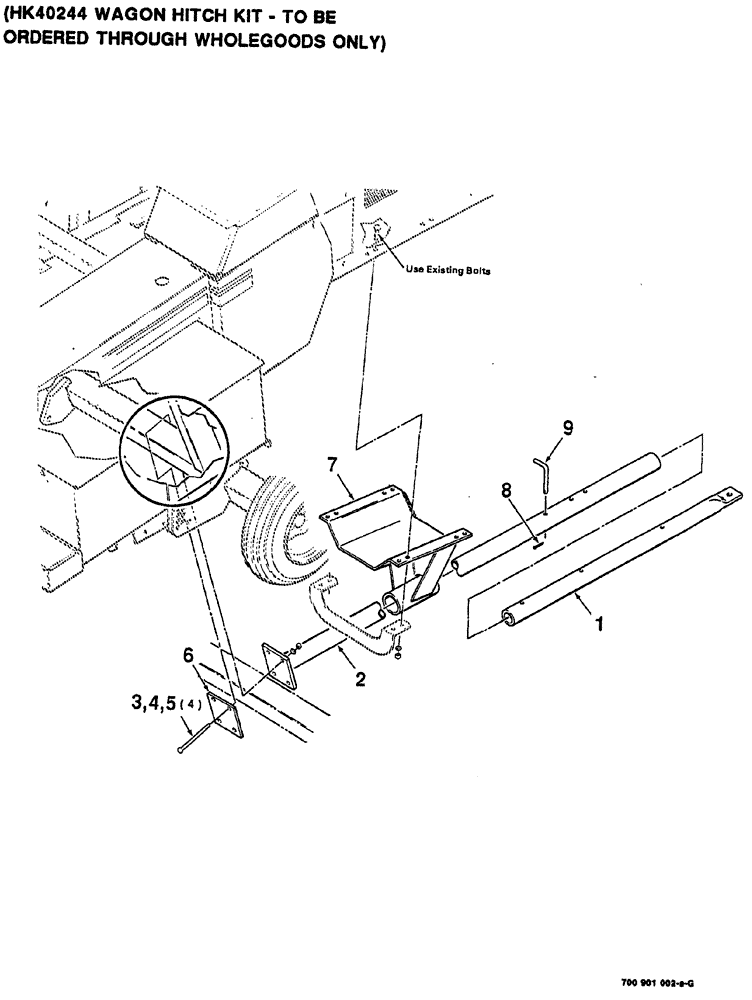

Запчасти Case IH 8555 (09-10) - WAGON HITCH KIT, HK40244 KIT, TO BE ORDERED THROUGH WHOLEGOODS ONLY Decals & Attachments

HK40244

KIT wagon hitch, complete

1шт.

1

6856157

TUBE

hitch

1шт.

2

700108697

HITCH ASSY

TUBE outer front

1шт.

3

413-896

BOLT,Hex, 1/2" - 13 x 6", Gr 5

hex cap, 1/2-13 x 6

4шт.

4

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

5

425-108

NUT,1/2" - 13, Gr 5

4шт.

6

700108699

PLATE

clamp

1шт.

7

700108692

SUPPORT

mounting, rear

1шт.

8

432-816

COTTER PIN,1/8" x 1"

1шт.

9

6557565

PIN

1шт.
