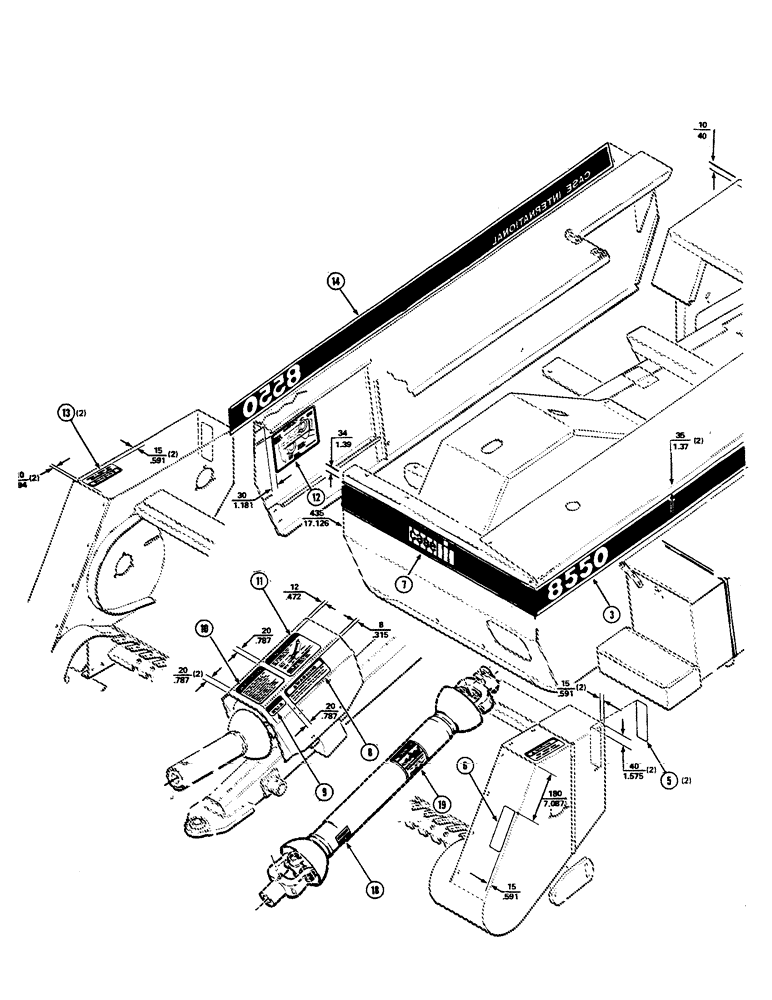

Запчасти Case IH 8550 (64) - DECAL LOCATION DIAGRAM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

700703441

DECAL

- operation

1шт.

2

700704658

DECAL

- needle timing

1шт.

3

1976028C1

DECAL

- combo, left front

1шт.

4

1976029C1

DECAL

- combo, left rear

1шт.

5

878660

REFLECTOR

- red

2шт.

6

878694

REFLECTOR

- amber

1шт.

7

1976030C1

DECAL

- stripe, front

1шт.

8

879197

DECAL

- warning, jack will support...

1шт.

9

7078256

DECAL

- notice, Serial Range: attach-540

1шт.

10

078311

DECAL - caution, keep all shields...

1шт.

11

700703908

DECAL

- notice, PTO shaft length...

1шт.

12

700704659

DECAL

- stuffer timing

1шт.

13

7778368

DECAL

- warning, keep hands away...

2шт.

14

1976027C1

DECAL

- combo, right

1шт.

15

1973426C1

DECAL

- Case International

1шт.

16

700703905

DECAL

- operation

2шт.

17

700700036

DECAL

- danger, serious injury...

2шт.

18

700707960

DECAL

- danger, rotating driveline...

1шт.

19

700708583

DECAL

- danger, driveline

1шт.
