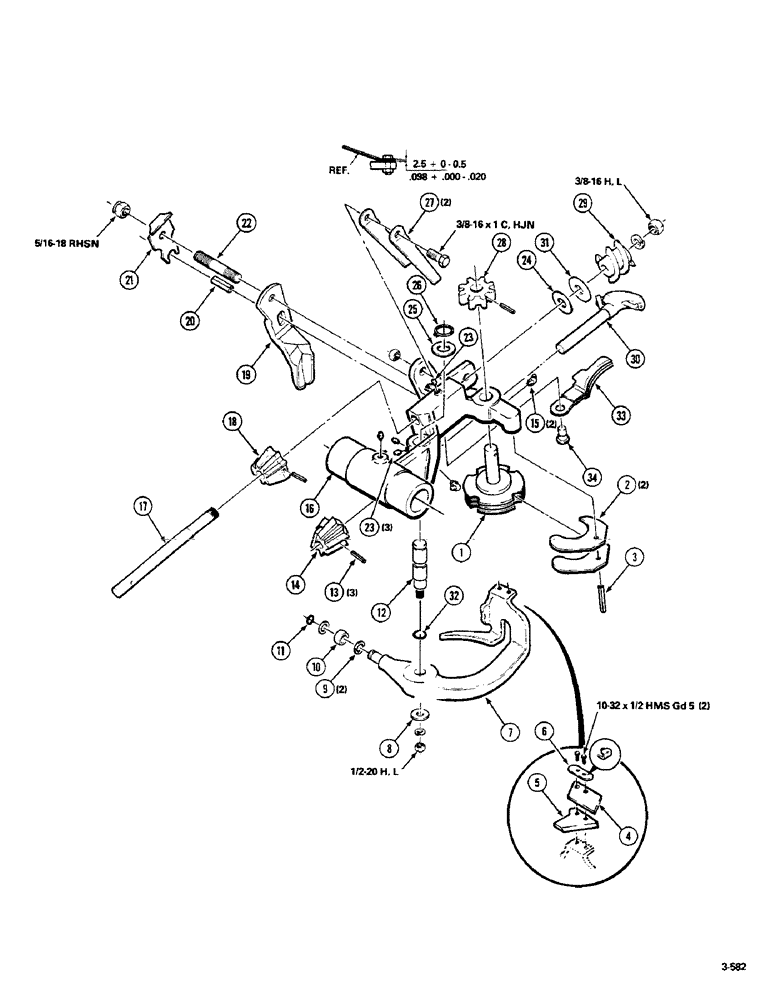

Запчасти Case IH 8550 (48) - KNOTTER, TWINE, HEAD ASSEMBLY (68) - TYING/WRAPPING

700111998

KNOTTER

HEAD COMPLETE (Equipped with (2) twine springs)

1шт.

1

8745358

DISC

- twine

1шт.

2

6853352

CLEANER

- knotter

2шт.

3

63396

LOCK PIN,3/16" x 1 1/2", Slotted

SLOTTED SPRING PIN

1шт.

4

6858971

BASE

- knife

1шт.

5

49783

KNIFE

- twine

1шт.

6

6613624

WASHER, LOCK

LOCK - tab

1шт.

7

6853345

STRIPPER

ARM - stripper

1шт.

8

6591572

WASHER

- special

1шт.

9

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

MACHINERY BUSHING

2шт.

10

700122799

ROLLER

- spherical

1шт.

11

7852577

RING, SNAP

RING - retainer

1шт.

12

6591580

SHAFT

- stripper arm

1шт.

13

863761

PIN, GROOVED

GROOVE PIN

3шт.

14

7894389

PINION

GEAR - pinion, bill hook

1шт.

15

87415

LUBE NIPPLE,90 Degree, 1/4" NPT x 3/4" L, Drive

ZERK - 90 degrees

2шт.

16

6853329

FRAME

HEAD FRAME - knotter

1шт.

17

6553267

SHORT SHAFT

SHAFT - worm, knotter

1шт.

18

7894421

WORM

GEAR - pinion, worm

1шт.

19

6523203

CAM

- bill hook

1шт.

20

138-153

LOCK PIN,5/16" x 1", Slotted

SLOTTED SPRING PIN

1шт.

21

7895733

SPRING

TENSIONER SPRING

1шт.

22

6523229

STUD

- mounting

1шт.

23

77818

FITTING

ZERK

4шт.

24

6553275

SHIM

- countershaft

1шт.

25

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

MACHINERY BUSHING

1шт.

26

852533

OIL SEAL

RING - retainer

1шт.

27

6553259

SPRING

- twine

2шт.

28

7894454

PINION

GEAR - twine disc

1шт.

29

7894413

WORM GEAR

GEAR - worm

1шт.

30

700108195

BILL HOOK

- knotter

1шт.

31

7852163

BUSHING

MACHINERY BUSHING

1шт.

32

733048

O-RING

O - RING

1шт.

33

8745325

HOLDER

- twine

1шт.

34

6523237

SCREW

SHOULDER SCREW

1шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

1шт.

231-1445

NUT,5/16"-18, GB

5/16-18 REGULAR STOP NUT

1шт.
