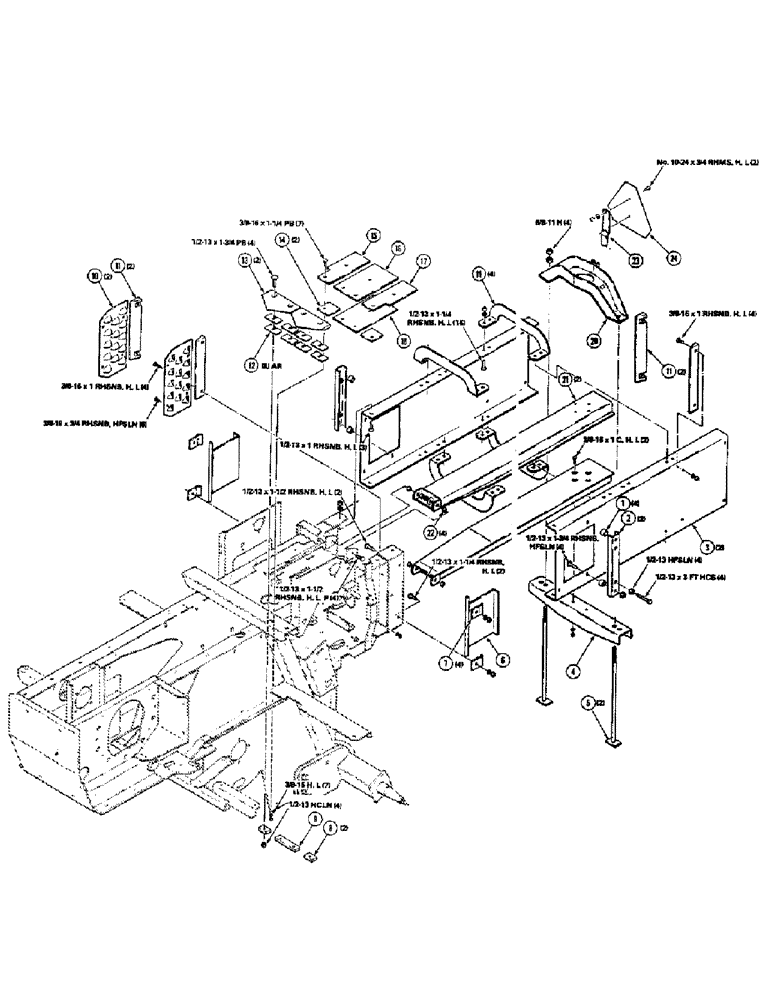

Запчасти Case IH 8550 (52) - BALE CHAMBER ASSEMBLY (62) - PRESSING - BALE FORMATION

1

700108677

SPACER

4шт.

2

700108424

SUPPORT

- vertical

2шт.

3

700108393

CHANNEL

- chamber, side

2шт.

4

6552558

CHANNEL

- cross, lower

1шт.

5

6560601

ROD

- tension

1шт.

6

700108394

DOOR ASSY.

DOOR - side

2шт.

7

700108422

CLIP

- door

4шт.

8

700108408

PAD

- knife

2шт.

9

700108409

PAD

- knife - center

1шт.

10

700108397

PLATE

RESISTOR - plate, hay

2шт.

11

837971

CASTING

RESISTOR - bar, hay

4шт.

12

700108406

ADJUSTING PLATE

SHIM

8шт.

13

700703779

KNIFE

2шт.

14

700108413

PLATE

- filler

2шт.

15

700108411

PLATE

- right

1шт.

16

700108412

PLATE

- center

1шт.

17

700108410

PLATE

- left

1шт.

18

700108414

PLATE

- filler

1шт.

19

700108401

SUPPORT

SPREADER - tie

4шт.

20

700108433

SUPPORT

TRUSS

1шт.

21

700108428

RAIL

2шт.

22

324269

BUSHING

SPACER

4шт.

23

7020597

BRACKET

STAKE - mounting, SMV (Extra)

1шт.

24

7020589

EMBLEM

- SMV (Extra)

1шт.

768226

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 RHSNB

4шт.

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

6шт.

068619

1/2-13 X 1-1/4 RHSNB

18шт.

7700131

SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

3шт.

873406

BOLT,Hex, 1/2" - 13 x 3", Gr 5, Full Thd

1/2-13 X 3 FTHCS

4шт.

707455

BOLT,#3, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 PB

4шт.

707018

BOLT,#3, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 PB

7шт.

700047

BOLT

3/8-16 X 1 RHSNB

12шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

8шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

2шт.

704288

LOCK NUT

1/2-13 HCLN

4шт.
