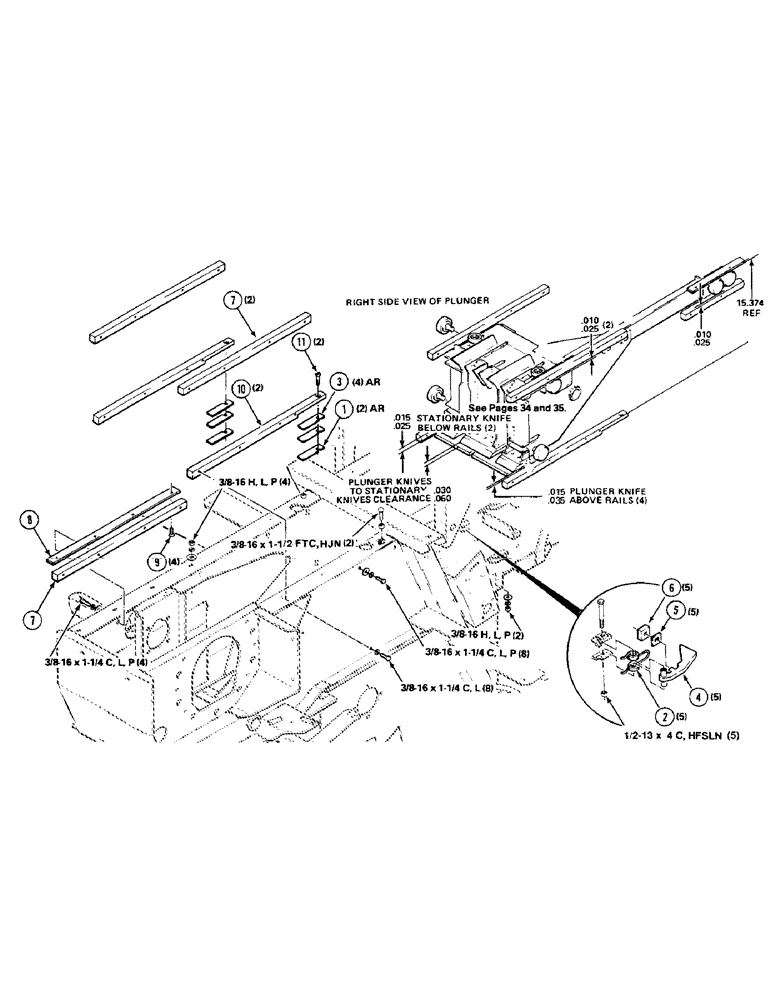

Запчасти Case IH 8550 (50) - PLUNGER RAILS AND HAY DOG ASSEMBLY (62) - PRESSING - BALE FORMATION

1

700108718

SHIM

2шт.

2

700707863

SPRING

- torsion

5шт.

3

700108719

SHIM

4шт.

4

700117281

DRIVE DOG

DOG - hay

5шт.

5

700108418

WASHER

- special

5шт.

6

700703778

BUMPER

5шт.

7

700108420

RAIL

3шт.

8

700108421

RAIL

- hardened

1шт.

9

703850

HEX SOC SCREW,Flat Hd, 3/8"-16 x 1"

3/8-16 X 1 HSFCHCS

4шт.

10

700108419

RAIL

- lower

2шт.

11

7883598

HEX SOC SCREW,Flat Hd, CSK, 3/8" - 16 x 1 1/2"

3/8-16 X 1-1/2 HSFCHCS

2шт.

413-864

BOLT,Hex, 1/2" - 13 x 4", Gr 5

1/2-13 X 4 C

5шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

22шт.

704858

LOCK NUT

1/2-13 HTLN

5шт.

873083

SCREW

3/8-16 X 1-1/2 FTC

2шт.
