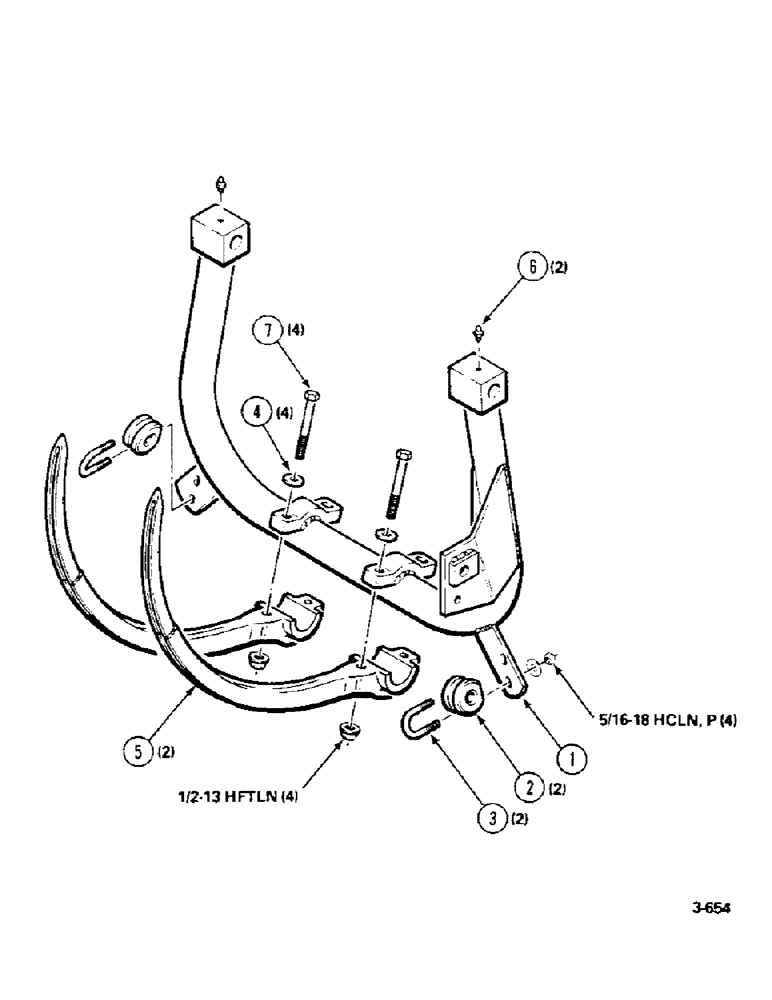

Запчасти Case IH 8550 (37) - SHUTTLE FRAME AND NEEDLE ASSEMBLY (62) - PRESSING - BALE FORMATION

1

700108176

FRAME ASSY

FRAME - shuttle

1шт.

2

7745003

GUIDE

2шт.

3

51200861

U-BOLT

2шт.

4

51200254

WASHER

- special

4шт.

5

700111996

NEEDLE

2шт.

6

077818

ZERK

2шт.

7

700705669

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1/2-13 X 4 C grade 8

4шт.

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

4шт.

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN grade G

4шт.
