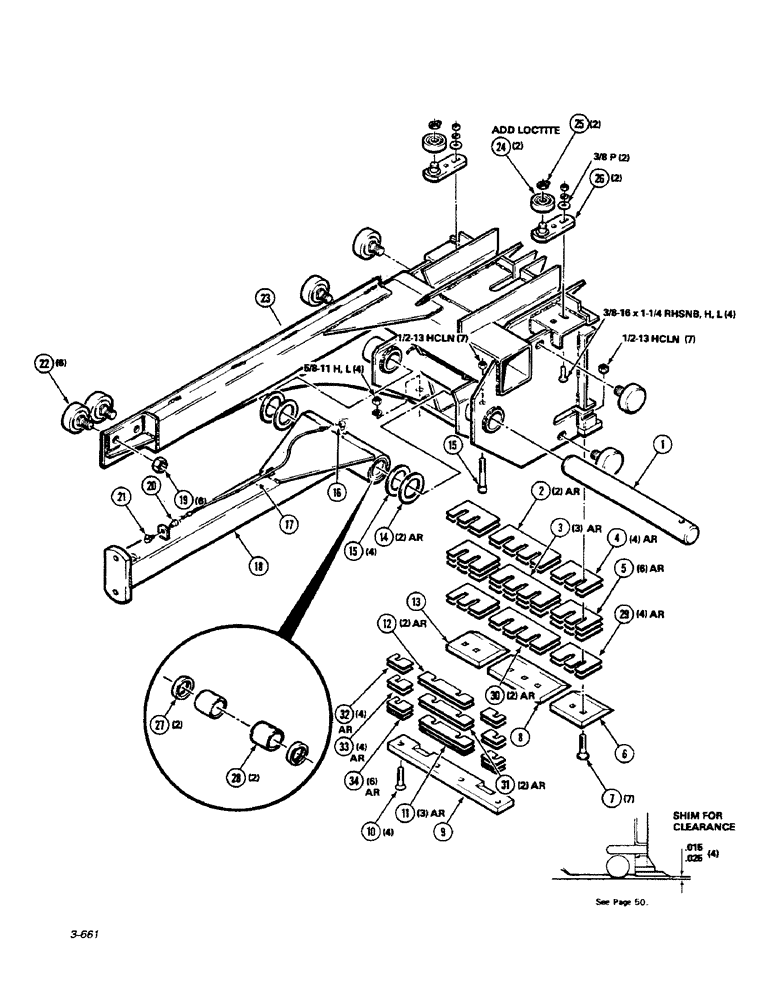

Запчасти Case IH 8550 (34) - PLUNGER ASSEMBLY (62) - PRESSING - BALE FORMATION

1

700108244

SHAFT

- plunger

1шт.

2

700108260

ADJUSTING PLATE

SHIM

2шт.

3

700108263

ADJUSTING PLATE

SHIM

3шт.

4

700108259

ADJUSTING PLATE

SHIM

4шт.

5

700108262

ADJUSTING PLATE

SHIM

6шт.

6

700703919

KNIFE

- plunger, left

1шт.

7

707455

BOLT,#3, 1/2" - 13 x 1 3/4", Gr 5

1/2-13 X 1-3/4 PB

7шт.

8

700703917

KNIFE

- plunger, center

1шт.

9

700703916

KNIFE

- plunger

1шт.

10

700702265

HEX SOC SCREW,Flat Hd, 5/8"-11 x 1 3/4"

5/8-11 X 2 HSFHCHCS

4шт.

11

700115416

SHIM

.018 SHIM

3шт.

12

700115417

SHIM

.034 SHIM

2шт.

13

700703920

KNIFE

- plunger, right

1шт.

14

052290

NARROW RIM MACHINERY BUSHING

4шт.

15

702852

SPARE PART

1/2-13 X 2-3/4 HSHCS

1шт.

16

700707005

FITTING

90 DEGREE ELBOW - male

1шт.

17

700707006

LINE

- grease

1шт.

18

700108249

PITMAN

ASSEMBLY (Includes bushing)

1шт.

19

700707397

SPECIAL NUT

3/4-16 HFTLN

6шт.

20

7746167

PLUG

CONNECTOR - female

1шт.

21

077115

ZERK

1шт.

22

7713829

BEARING ASSY,19.56 mm ID x 63.75 mm OD

- plunger

6шт.

23

700107895

PLUNGER

1шт.

24

711770

CAB

BEARING

2шт.

25

8052318

RING, SNAP

RING - retainer, external

2шт.

26

700108245

SUPPORT

2шт.

27

700703740

SEAL

- grease

2шт.

28

700703921

BUSHING,44.62mm ID x 49.33mm OD x 51.05mm L

BEARING - split

2шт.

29

700108182

SHIM

4шт.

30

700108181

ADJUSTING PLATE

SHIM

2шт.

31

700115415

SHIM

.010 SHIM

2шт.

32

700115420

SHIM

.034 SHIM

4шт.

33

700115418

SHIM

.010 SHIM

4шт.

34

700115419

SHIM

.018 SHIM

6шт.

700054

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

3/8-16 X 1-1/4 RHSNB

4шт.

704288

LOCK NUT

1/2-13 HCLN

8шт.
