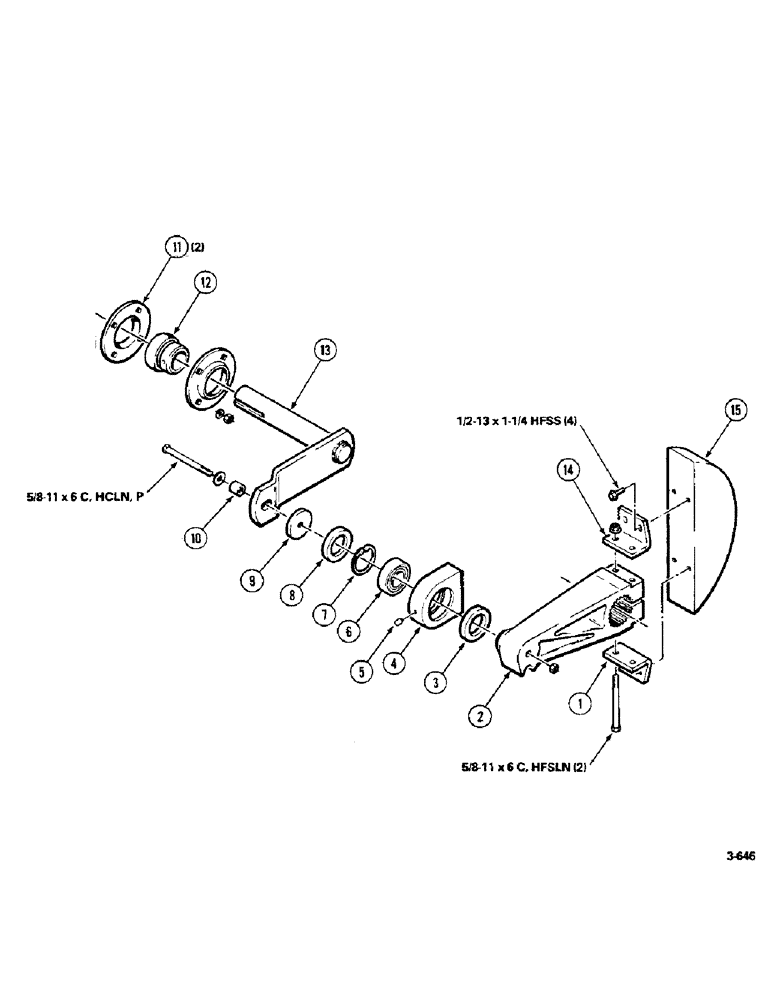

Запчасти Case IH 8550 (20) - PLUNGER ARM ASSEMBLY (62) - PRESSING - BALE FORMATION

1

700108687

ANGLE

1шт.

2

700108509

CRANK

ARM

1шт.

3

8744047

SEAL

- grease, inner

1шт.

4

6855472

BEARING HOUSING

- bearing

1шт.

5

077016

ZERK

1шт.

6

8051005

ROLLER BEARING,55mm ID x 100mm OD x 25mm W

BEARING - roller, cylindrical

1шт.

7

8052326

RING

- retainer

1шт.

8

8744054

SEAL

- dust

1шт.

9

700108510

WASHER

WASHER - special

1шт.

10

700107075

BUSHING,16mm ID x 25.4mm OD x 27mm L

1шт.

11

714360

FLANGED BEARING

FLANGE - bearing

2шт.

12

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

13

700108511

ARM

1шт.

14

700108686

ANGLE

1шт.

15

700108685

WEIGHT

- counterbalance

1шт.

7771017

SPECIAL BOLT,5/8" - 11 x 6", Gr 5

5/8-11 X 6 C

3шт.

7771363

BOLT,Hex Flange, 1/2" - 13 x 1 1/4", SPL

1/2-13 X 1-1/4 HFSS

4шт.

230-42110

LOCK NUT,5/8"-11, GA

5/8-11 HCLN

1шт.
