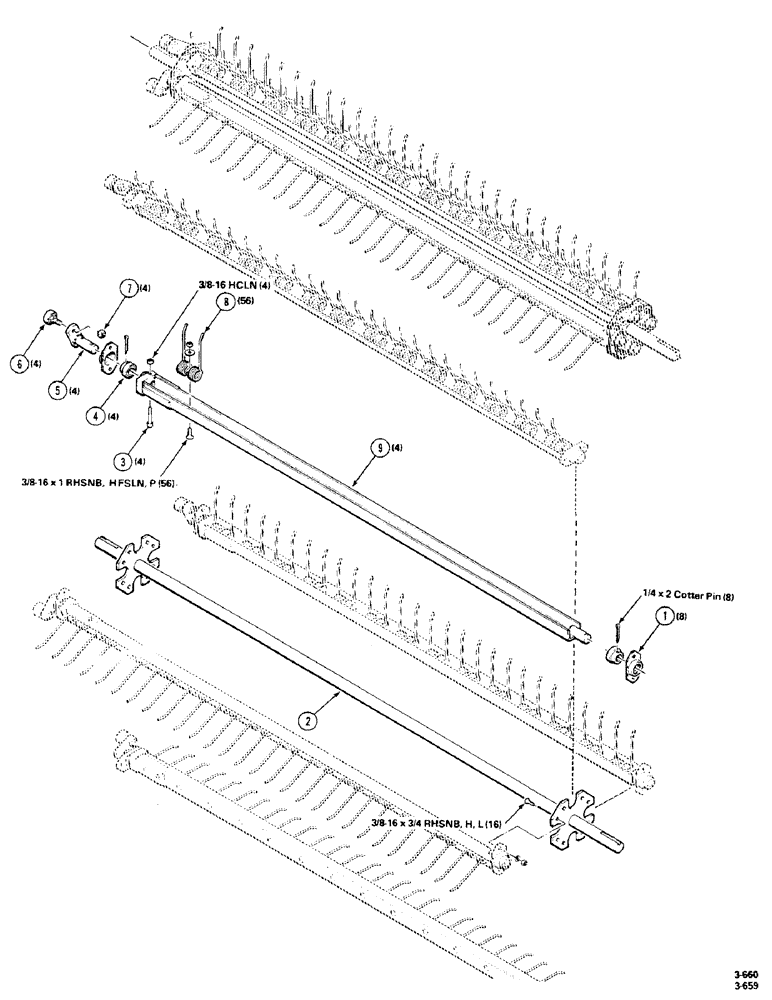

Запчасти Case IH 8550 (26) - PICKUP TINE ASSEMBLY (60) - PRODUCT FEEDING

1

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

2

700108609

ROTOR

SHAFT - pickup

1шт.

3

701367

HEX SOC SCREW,3/8"-16 x 2 1/4"

SOCKET HEAD CAP SCREW

4шт.

4

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - spherical

8шт.

5

700108618

ARM

CRANK - tine bar

4шт.

6

700705612

CAM FOLLOWER

BEARING - cam

4шт.

7

700707867

NUT

1/2-20 HFTLN

4шт.

8

700703860

REEL TINE,Coiled, 2 Prongs, 164mm L

TINE - double

56шт.

9

700108614

CHANNEL

- tine

4шт.

700047

BOLT

3/8-16 X 1 RHSNB

56шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

16шт.

88902

NUT,3/8"-16

3/8-16 HCLN

4шт.
