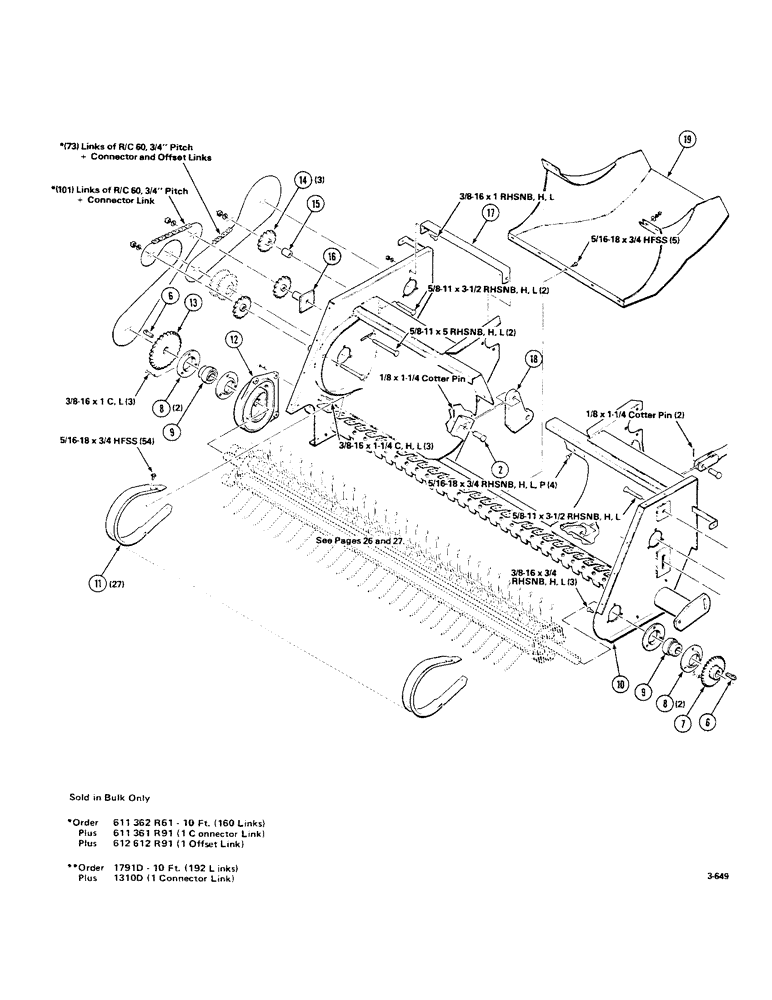

Запчасти Case IH 8550 (24) - PICKUP ASSEMBLY (60) - PRODUCT FEEDING

1

700108643

SUPPORT

BRACKET - rocker

1шт.

2

A35113

PIN

CLEVIS PIN

5шт.

3

700108640

STRUT

1шт.

4

6176655

BUSHING

SPACER

2шт.

5

087973

SPROCKET - idler

2шт.

6

761213

KEY

GIB KEY

2шт.

7

700108635

SPROCKET ASSY.

SPROCKET - pickup

1шт.

8

051417

FLANGE - bearing

4шт.

9

700708091

SPHERICAL BEARING,34.93 mm ID x 72 mm OD x 38.89 mm

BEARING - spherical

2шт.

10

700108576

FRAME

- pickup

1шт.

11

700108607

ANTI-WRAP PLATE

WRAPPER

27шт.

12

700108672

CAM

TRACK

1шт.

13

6859821

SPROCKET ASSY.

SPROCKET - pickup drive

1шт.

14

087726

SPROCKET - idler

3шт.

15

6268494

SPACER

1шт.

16

700108636

SUPPORT

- sprocket

1шт.

17

700108683

SUPPORT

- brace

1шт.

18

700108638

LINK

- hydraulic

1шт.

19

700108600

CHUTE ASSY.

CHUTE

1шт.

20

7701808

BOLT,Hex, 5/8" - 11 x 17", Grade 5

- spring tightener

1шт.

21

763367

CLEVIS PIN

1шт.

22

062521

HAIR PIN COTTER

2шт.

23

6845879

PLUG

- spring

1шт.

24

6522700

SPRING

ASSEMBLY

1шт.

25

700108632

STRUT

- gauge wheel

2шт.

26

700707953

RIM

WHEEL - gauge

2шт.

27

052175

MACHINERY BUSHING

3шт.

7700156

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

4шт.

7702160

BOLT,Hex 3/4" - 10 x 2", Gr 5

3/4-10 X 2 C

1шт.

7870256

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 5", Gr 5

5/8-11 X 5 RHSNB

2шт.

7870215

CARRIAGE BOLT,Short NK, 5/8"-11 x 3 1/2", G5

5/8-11 X 3-1/2 RHSNB

3шт.

700047

BOLT

3/8-16 X 1 RHSNB

1шт.

7700065

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 3/4", Gr 5

3/8-16 X 3/4 RHSNB

3шт.

700013

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 RHSNB

4шт.

702035

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5, Full Thd

3/8-16 X 1-1/4 C

3шт.

703249

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8-16 x 1 C

3шт.

703132

SERRATED SCREW

5/16-18 X 3/4 HFSS

59шт.

704791

LOCK NUT

3/4-10 HCLN

1шт.

705574

WASHER,1 1/8" x 2" x .156", HDN

4шт.
