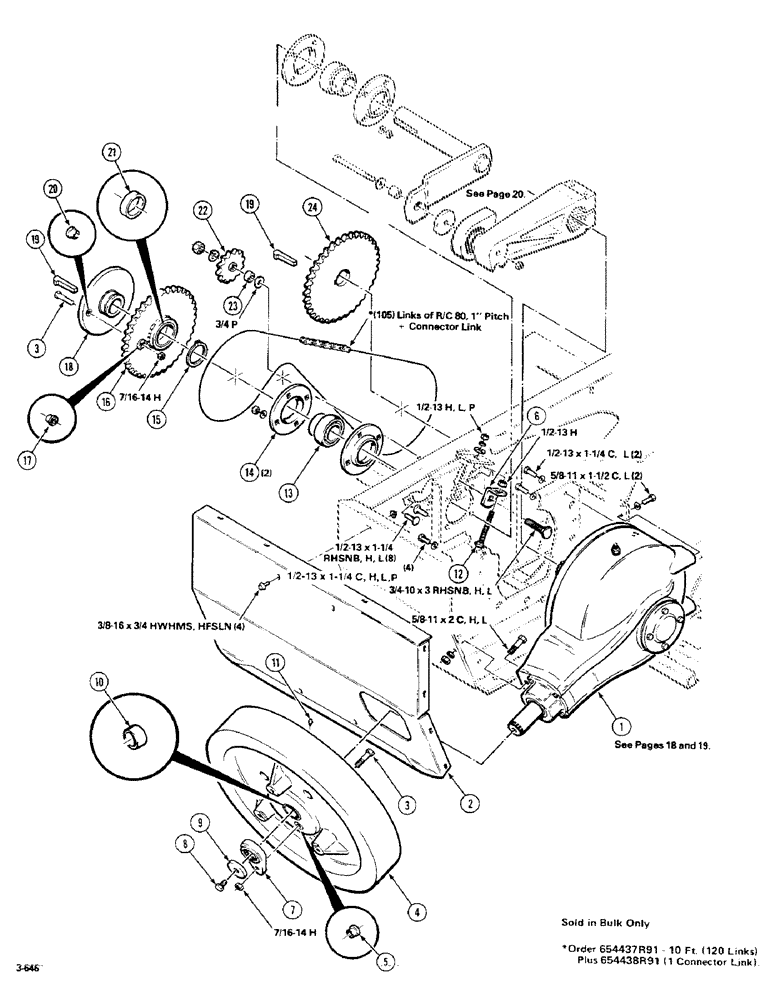

Запчасти Case IH 8550 (16) - GEARBOX AND PLUNGER DRIVE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

1

700108490

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

2

700108499

SHIELD

- front

1шт.

3

6521868

BOLT

SHEAR BOLT - packaged (10) 7/16-14 x 2-1/8 C (No. 7703507 and (10) 7/16-14 H (No. 7774995)

1шт.

4

700108500

BALER FLYWHEEL

FLYWHEEL ASSEMBLY

1шт.

5

7852718

SLEEVE

- shear

1шт.

6

6180897

WASHER (S.N. 4650-0001 thru 00250)

1шт.

7

7895485

HUB

- shear

1шт.

8

7884737

BOLT,Spcl, Hex, 5/8" - 11 x 1 1/2", Gr 5, Full Thd

NYLOC CAP SCREW

1шт.

9

6522947

WASHER

1шт.

10

700703809

BRONZE BUSHING

BEARING - bronze

1шт.

11

077016

ZERK

1шт.

12

7770787

FITTING,Sq Nk, 1/2" - 13 x 4", Gr 5, Full Thd

1/2-13 X 4 FT RHSNB

1шт.

13

712158

SPHERICAL BEARING,2" ID x 100 mm OD

BEARING - spherical

1шт.

14

714360

FLANGED BEARING

FLANGE - bearing

2шт.

15

052647

RING - retainer

1шт.

16

700108516

SPROCKET ASSY.

SPROCKET ASSEMBLY

1шт.

17

700108519

SLEEVE

- shear

1шт.

18

700108520

HUB

(Includes shear sleeve)

1шт.

19

061747

GIB KEY

2шт.

20

6855837

SLEEVE

- shear

1шт.

21

700703700

BUSHING

- bronze

1шт.

22

51200277

SPROCKET ASSY.

SPROCKET - idler

1шт.

23

337527

SPACER

1шт.

24

700108702

SPROCKET ASSY.

SPROCKET

1шт.

25

700198515

ANGLE

1шт.

7870306

BOLT,Sq Nk, 3/4" - 10 x 3", Gr 5

3/4-10 X 3 RHSNB

1шт.

7701949

BOLT,Hex, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 C

1шт.

7701758

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 5

5/8-11 X 1-1/2 C

2шт.

068619

1/2-13 X 1-1/4 RHSNB

8шт.

7701188

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 C

4шт.

703959

BOLT,Hex, 1/2" - 13 x 1", Gr 5, Full Thd

1/2-13 X 1 C

2шт.

7883374

SCREW,Hex Washer, 3/8" - 16 x 3/4"

3/8-16 X 3/4 HWHMS

4шт.
