(15) - SLIP CLUTCH, PRIMARY, DRIVE ASSEMBLY

Запчасти Case IH 8550 (15) - SLIP CLUTCH, PRIMARY, DRIVE ASSEMBLY (14) - MAIN GEARBOX & DRIVE

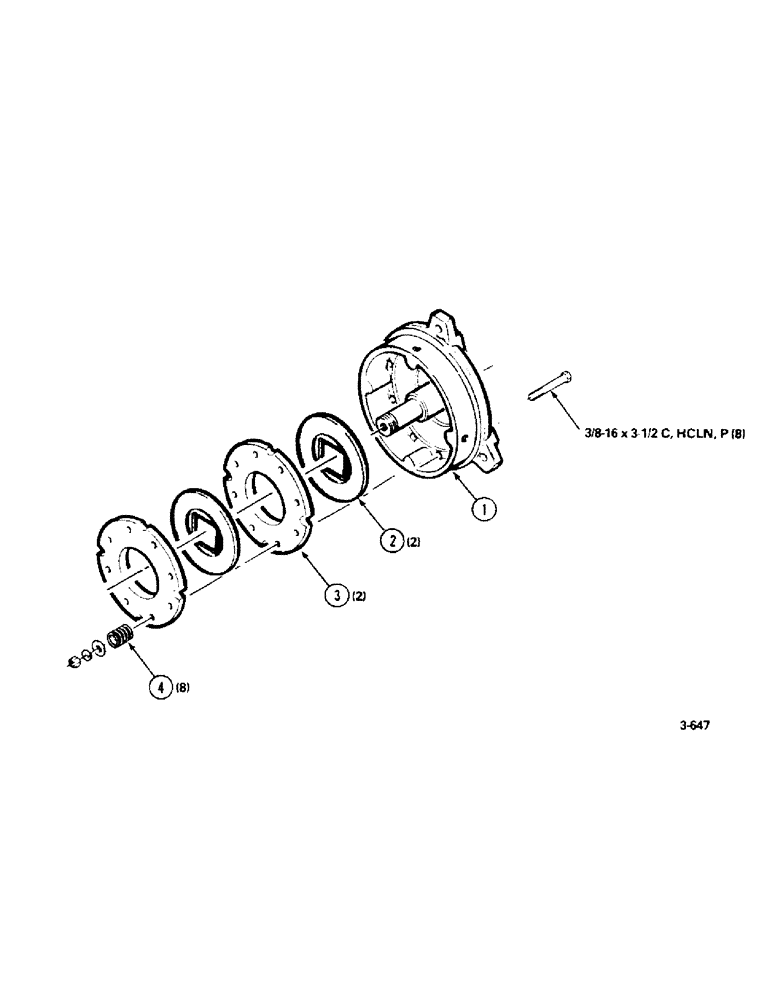

Схема запчастей Case IH 8550 - (15) - SLIP CLUTCH, PRIMARY, DRIVE ASSEMBLY (14) - MAIN GEARBOX & DRIVE
2
1
4
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

700108160

HOUSING

HUB AND HOUSING

1шт.

2

6522874

DISC,104.8mm ID x 174.62mm OD x 6.35mm Thk

- friction

2шт.

3

6522866

CLUTCH PLATE

PLATE - clutch

2шт.

4

758029

SPRING

- compression

8шт.

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

8шт.

88902

NUT,3/8"-16

3/8-16 HCLN

8шт.
