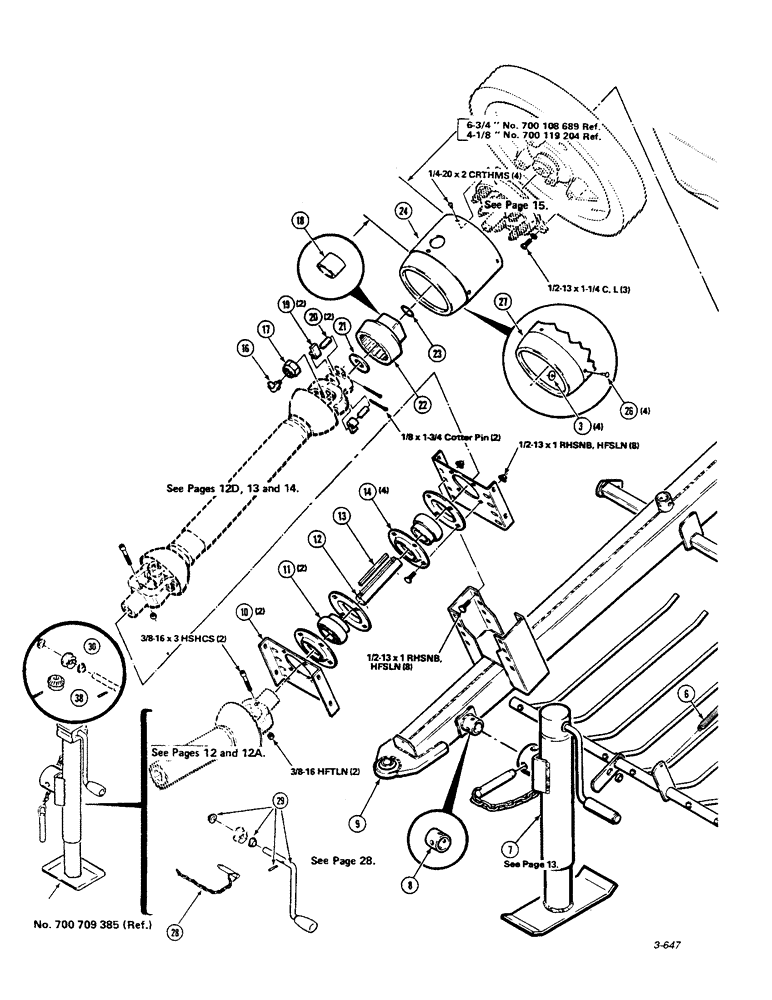

Запчасти Case IH 8550 (12B) - TONGUE AND PRIMARY DRIVE ASSEMBLY (14) - MAIN GEARBOX & DRIVE
№
Артикул
Название
Примечание
Количество
1
700706639
CRANE
HANDLE - crank (700706638 Jack)
1шт.
2
700706640
PIN
AND CHAIN ASSEMBLY (700706638 Jack)
1шт.
3
700703962
WASHER
4шт.
4
700108402
GUARD
WINDGUARD
1шт.
5
700708272
BUSHING
SPACER
2шт.
6
758441
SPRING
1шт.
7
700706638
JACK
1шт.
700709385
JACK
1шт.
8
6227391
TUBE,2" OD, 1.88" Length
- jack
1шт.
9
700108378
TOW BAR
TONGUE
1шт.
Ball only replacement in end of item 9 is 700700017
1шт.
10
700108525
SUPPORT
- drive shaft
2шт.
11
700704263
SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm
BEARING - spherical
2шт.
12
700108507
SHAFT
- intermediate
1шт.
13
700108529
KEY
1шт.
14
714360
FLANGED BEARING
FLANGE - bearing
4шт.
16
077115
1/8-27 ZERK
1шт.
17
074476
3/4-16 LH JAM STOP NUT
1шт.
18
7052657
BRONZE BUSHING
BUSHINGS - bronze
2шт.
19
6522924
CLUTCH
PAWL
2шт.
20
6522916
PIN
2шт.
21
740522
WASHER
1шт.
22
700108504
HOUSING
- clutch
1шт.
23
700703930
O-RING
1шт.
24
700108689
SHIELD
(Use with implement driveline equipped with metal shields)
1шт.
700119204
SHIELD
(Use with implement driveline equipped with plastic shields)
1шт.
25
700108427
SUPPORT
1шт.
26
064642
RIVET - pop
4шт.
27
700108691
CAP
- shield
1шт.
28
700709409
LINK CHAIN
PIN AND CHAIN ASSEMBLY (700709385 Jack)
1шт.
29
700702060
CRANKED HANDLE
CRANK KIT (700709385 Jack)
1шт.
30
700702059
KIT
GEAR SET (700709385 Jack)
1шт.
700706641
KIT
JACK REPAIR KIT
1шт.
701235
BOLT,1/2" - 13 x 1 1/2", Gr 5
1/2-13 X 1-1/2 X C
2шт.
702456
SPARE PART,3/8" - 16 x 3"
3/8-16 X 3 HSHCS
2шт.
7701188
BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5
1/2-13 X 1-1/4 C
3шт.
703793
BOLT,Hex, 5/8" - 11 x 1 3/4", Gr 5, Full Thd
5/8-11 X 1-3/4 C
3шт.
7701949
BOLT,Hex, 5/8" - 11 x 2", Gr 5
5/8-11 X 2 C
3шт.
7700131
SHROUD,Sq Nk, 1/2" - 13 x 1", Gr 5
1/2-13 X 1 RHSNB
16шт.
070417
1/4-20 X 2 CRTHMS
4шт.
704734
FLANGE NUT,Flg, 3/8"-16
3/8-16 HFTLN
2шт.
231-5348
FLANGE NUT,Flg, 1/2"-13
1/2-13 HFTLN
2шт.
Выбрано товаров: 42
