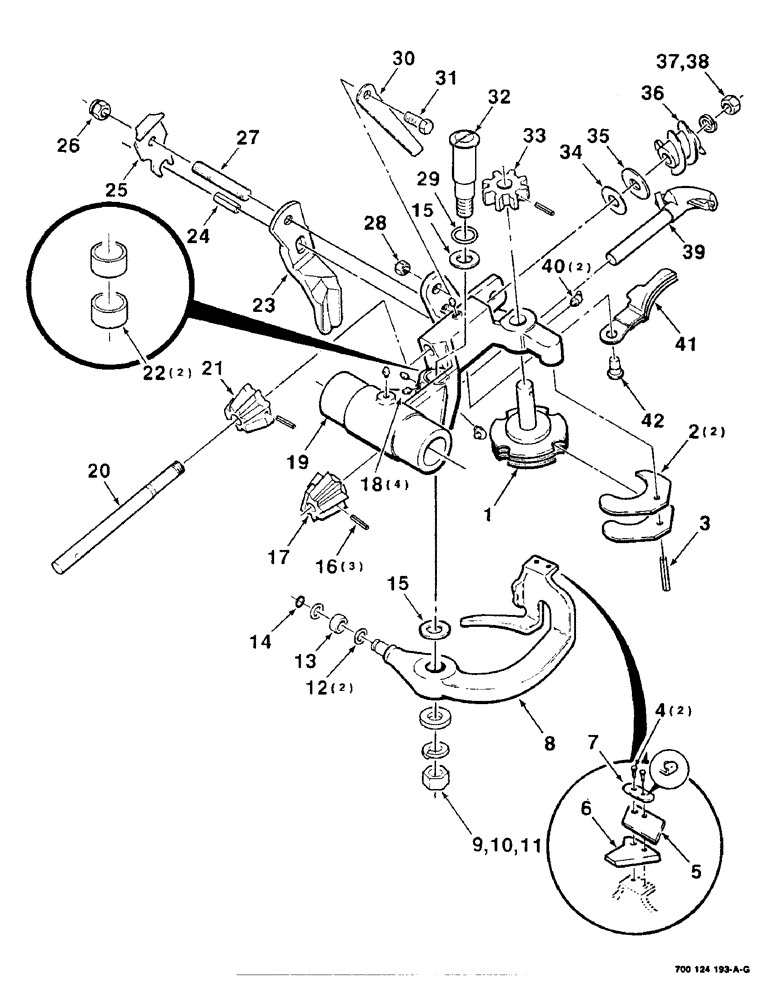

Запчасти Case IH 8545 (6-24) - KNOTTER HEAD ASSEMBLY (TWINE) (S.N. CFH0045251 AND LATER) (14) - BALE CHAMBER

700124193

KNOTTER

HEAD COMPLETE

1шт.

1

8745358

DISC

- twine

1шт.

2

6853352

CLEANER

- knotter

2шт.

3

138-100

LOCK PIN,3/16" x 1 1/2", Slotted

PIN, 3/16" x 1 1/2", Slotted

1шт.

4

163-47

SCREW,Hex, #10 - 32 x 1/2", Gr 5

2шт.

5

6858971

BASE

- knife

1шт.

6

700714003

KNIFE

- twine

1шт.

7

6613624

WASHER, LOCK

TAB - lock

1шт.

8

700122620

ARM

- stripper

1шт.

9

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

11

425-118

NUT,1/2"-20, G5

1/2-20 HEX JAM NUT

1шт.

12

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

9/16 X 20 GA. MB - special

2шт.

13

700122799

ROLLER

- spherical

1шт.

14

7852577

RING, SNAP

RING - retainer

2шт.

15

7852742

WASHER,19.84mm ID x 27.38mm OD x 0.889mm Thk

25/32 X 20 GA. MB - special

2шт.

16

31123R1

LOCK PIN,M5 x 22, Slotted

Pin, Grooved, M5 x 22

3шт.

17

7894389

PINION

GEAR - pinion, bill hook

1шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

4шт.

19

700122619

FUNNEL

KNOTTER HEAD FRAME ASSEMBLY (Includes item 22)

1шт.

20

6553267

SHORT SHAFT

SHAFT - worm, knotter

1шт.

21

7894421

WORM

GEAR - bevel, pinion, worm

1шт.

22

700710315

BUSHING,19.03mm ID x 22.24mm OD x 12.95mm L

2шт.

23

6523203

CAM

- bill hook

1шт.

24

138-153

LOCK PIN,5/16" x 1", Slotted

PIN, 5/16" x 1", Slotted

1шт.

25

7895733

SPRING

TENSIONER - spring

1шт.

26

231-1445

NUT,5/16"-18, GB

5/16-18 LIGHT HEX STOP NUT

1шт.

27

6523229

STUD

- mounting

1шт.

28

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HEX JAM NUT

1шт.

29

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

-016, 70 Duro, .614" ID x .070" Thk

1шт.

30

6553259

SPRING

- twine

1шт.

31

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

32

700122621

SHAFT

- knife arm

1шт.

33

7894454

PINION

GEAR - pinion, twine disc

1шт.

34

6553275

SHIM

- countershaft

1шт.

35

7852163

BUSHING

5/8 X 20 GA. MB - special

1шт.

36

7894413

WORM GEAR

GEAR - worm

1шт.

37

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

38

492-11038

LOCK WASHER,3/8"

1шт.

39

700108195

BILL HOOK

- knotter

1шт.

40

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

2шт.

41

8745325

HOLDER

- twine

1шт.

42

6523237

SCREW

SHOULDER SCREW

1шт.
