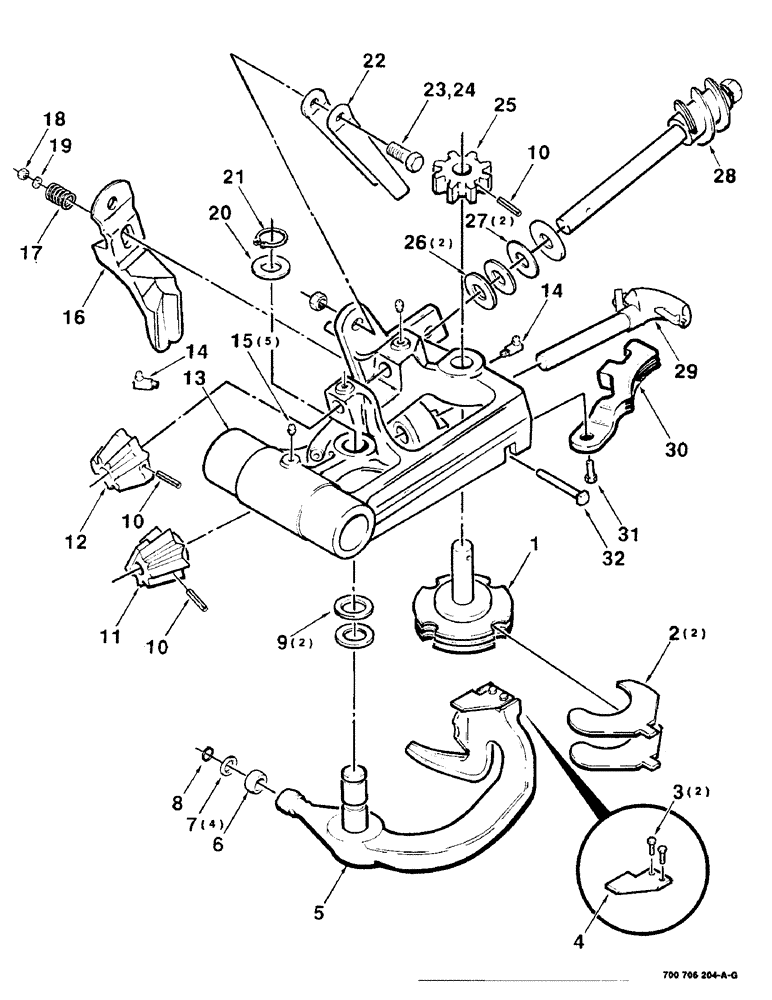

Запчасти Case IH 8545 (6-22) - KNOTTER HEAD ASSEMBLY - RASSPE (TWINE), (S.N. CFH0044501 THRU CFH0045210) (14) - BALE CHAMBER

700709864

KNOTTER

HEAD COMPLETE (Rasspe)

1шт.

1

700707896

TWINE

DISC - twine

1шт.

2

700707902

CLEANER

- knotter

2шт.

3

700707886

BOLT,M4 x 10

M4 X .07 X 10 C

2шт.

4

700707884

KNIFE

- twine

1шт.

5

700707883

ARM

ASSEMBLY (Includes items 3 & 4)

1шт.

6

700707887

ROLLER

- spherical

1шт.

7

7852593

SHIM,15mm ID x 21mm OD x 1mm Thk

9/16 X 20 GA. MB - special

4шт.

8

700707888

CIRCLIP

RING - retainer

1шт.

9

700707890

SPACER

2шт.

10

31123R1

LOCK PIN,M5 x 22, Slotted

M5 X 22 SLOTTED SPRING PIN

3шт.

11

700710906

PINION

GEAR - pinion, bill hook

1шт.

12

700710904

GEAR

CAM - jaw, bill hook

1шт.

13

700707882

FRAME

- head

1шт.

14

905251R1

LUBE NIPPLE,90 Degree, M6 x 1

M6 X 1.00 X 90 DEGREE ZERK

2шт.

15

321204

LUBE NIPPLE,M6 x 1.0 x 16mm OAL

NIPPLE, LUBE, M6 x 1, 16mm lg

5шт.

16

700707891

JAW

CAM - jaw, bill hook

1шт.

17

700707894

SPRING

- cam

1шт.

18

832-41308

NUT,M8 x 1.25, Cl 10

8 X 1.25 HTLN

1шт.

19

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

SPACER - cam

1шт.

20

700707889

SPACER

1шт.

21

100-1175

SNAP RING,#75, Ext

Ring, Snap, #75, Ext

1шт.

22

700707905

SPRING

- twine (Pair)

1шт.

23

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

24

825-1410

NUT,M10, Cl 8

1шт.

25

700707897

GEAR

- pinion, twine disc

1шт.

26

7852163

BUSHING

5/8 X 20 GA. NRMB

2шт.

27

6553275

SHIM

5/8 .007 SHIM

2шт.

28

700707900

SHAFT

ASSEMBLY - worm

1шт.

29

700707906

HOOK

BILL HOOK ASSEMBLY

1шт.

30

700707903

TWINE

HOLDER - twine

1шт.

31

700707904

BOLT,Spcl

SHOULDER SCREW

1шт.

32

700707892

BOLT

- special

1шт.
