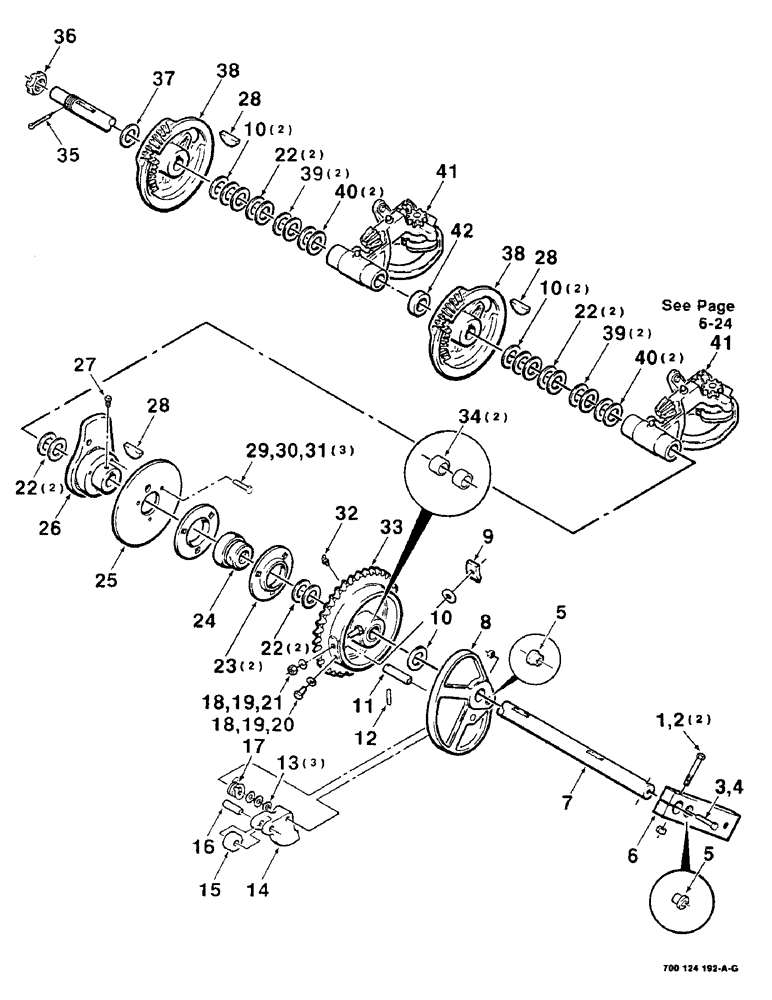

Запчасти Case IH 8545 (6-20) - KNOTTER DRIVE AND CAM ASSEMBLY (HFI) (S.N. CFH0045251 AND LATER) (14) - BALE CHAMBER

1

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

2шт.

2

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/C

2шт.

3

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

4

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/C

1шт.

5

6853592

SLEEVE

- shear

2шт.

6

6853840

ARM

- needle (Includes item 5)

1шт.

7

700112446

SHAFT

- drive, knotter

1шт.

8

700119467

CAM

ASSEMBLY - clutch (Includes item 5)

1шт.

9

6853857

LUG

1шт.

10

7852171

BUSHING

1-1/8 X 20 GA. MB - special

5шт.

11

6853642

PIN

- dog

1шт.

12

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

13

95-81100

WASHER,33/64" x 7/8" x .049"

1/2 X 18 GA. NRMB

3шт.

14

6853626

DRIVE DOG

DOG - cam

1шт.

15

6853634

ROLLER

1шт.

16

37-1624

DOWEL,3/8" x 1 1/2"

PIN - dowel

1шт.

17

7758857

SPRING

- torsion

1шт.

18

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

19

492-11038

LOCK WASHER,3/8"

2шт.

20

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

21

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HEX JAM NUT GR/2

1шт.

22

195-2111

WASHER,1 3/16" x 1 3/4" x .032"

1-1/8 X 22 GA. MB - special

8шт.

23

H747188

FLANGED BEARING,112.73 mm OD x 8.74 mm

FLANGE - bearing

2шт.

24

455959R92

BEARING ASSY,28.57mm ID x 62mm OD x 18mm W

- spherical

1шт.

25

6553283

DISC

- brake

1шт.

26

700121550

CAM

- knotter

1шт.

27

485-1388

SET SCREW,Sq Hd, 3/8"-16 x 1/2"

3/8-16 X 1/2 CPSQHSS

1шт.

28

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

3шт.

29

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

3шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

3шт.

31

425-104

NUT,1/4"-20, Cl 5

3шт.

32

219-90

LUBE NIPPLE,45 Degree Elbow, 1/4" -28 NPTF

1/4-28 X 45 DEGREE ZERK

1шт.

33

6853303

PINION

SPROCKET ASSEMBLY (Includes item 34)

1шт.

34

7852023

BUSHING

- bronze

2шт.

35

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1-1/2"

1шт.

36

7774581

SLOTTED NUT

1-1/8-12 SLOTTED HEX NUT GR/2

1шт.

37

52522

BUSHING

1-1/8 X 10 GA. NRMB

1шт.

38

700122623

GEAR

M - cam

2шт.

39

6553317

ADJUSTING PLATE

1-1/8 X .005 SHIM

4шт.

40

6553325

ADJUSTING PLATE

SHIM - 1.125 x .010

4шт.

41

700124193

KNOTTER

HEAD ASSEMBLY - knotter

2шт.

42

6853899

SPACER

1шт.
