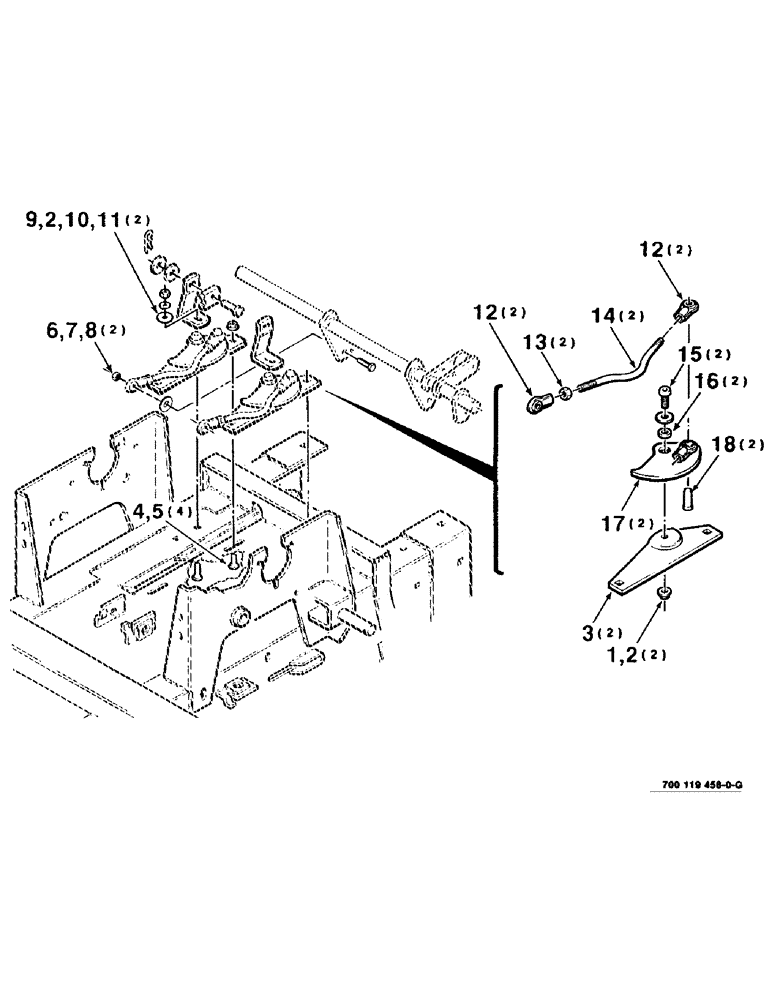

Запчасти Case IH 8545 (6-10) - FINGER GUIDE ASSEMBLY (TWINE) (14) - BALE CHAMBER

1

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

4шт.

3

700119459

MOUNTING PARTS

MOUNTING - finger

2шт.

4

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

4шт.

5

231-5146

FLANGE NUT,3/8"-16

4шт.

6

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

7

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

2шт.

8

231-4115

NUT,5/16"-18, GB

5/16-18 HTLN GR/C

2шт.

9

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

425-106

NUT,3/8"-16, Cl 5

2шт.

12

700703692

ADJUSTMENT ROD

ROD END

4шт.

13

425-115

NUT,5/16"-24, G5

2шт.

14

700119462

ROD

2шт.

15

164-51

HEX SOC SCREW,Flat Hd, 3/8" - 16 x 1"

3/8-16 X 1 HSBHCS GRD. 8 NP

2шт.

16

6553614

SPACER

2шт.

17

700120654

FINGER

ASSEMBLY - twine

2шт.

18

700709157

RIVET

- pan head

2шт.
