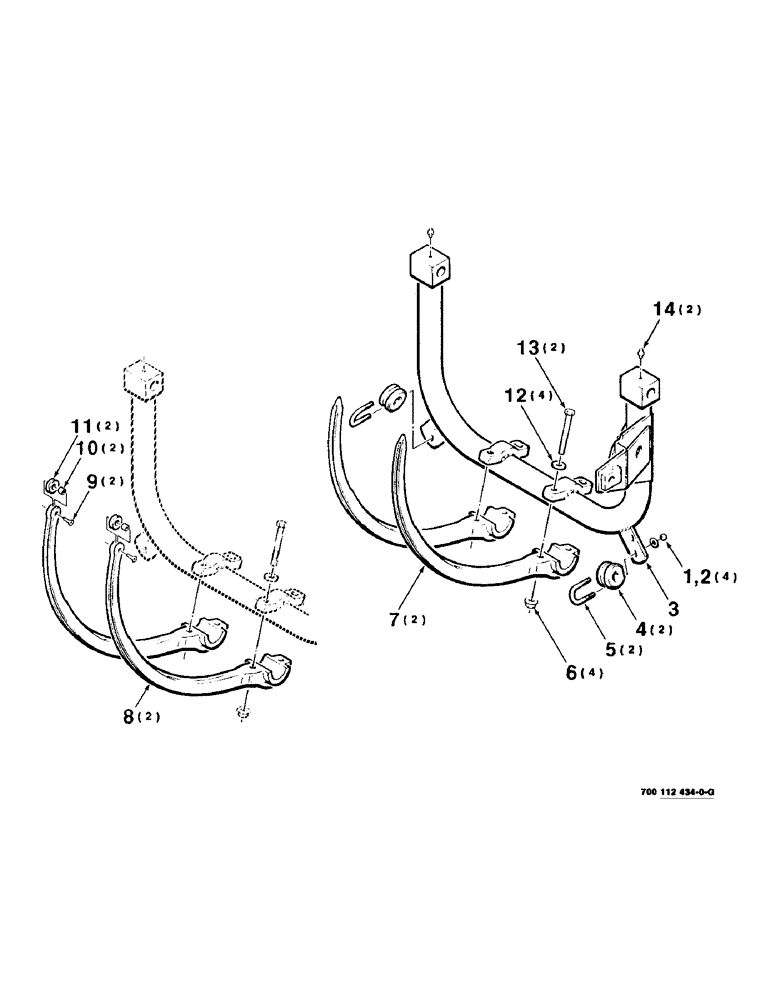

Запчасти Case IH 8545 (6-08) - NEEDLE ASSEMBLY (14) - BALE CHAMBER

1

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

4шт.

2

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

4шт.

3

700112436

FRAME

- needle

1шт.

4

700711131

GUIDE

2шт.

5

766543

SCREW

2шт.

6

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

7

700112435

NEEDLE

(Twine)

2шт.

8

700119471

NEEDLE

(Wire)

2шт.

9

61-42512

HEX SOC SCREW,Flat Hd, 1/4"-20 x 3/4"

1/4-20 X 3/4 HSFCHCS (Wire only)

2шт.

10

6560403

SPACER

(Wire only)

2шт.

11

7053739

ROLLER

(Wire only)

2шт.

12

51200254

WASHER

- special

4шт.

13

700705669

BOLT,Hex, 1/2" - 13 x 4", Gr 8

1/2-13 x 4 C GR8 NP

2шт.

14

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

2шт.
