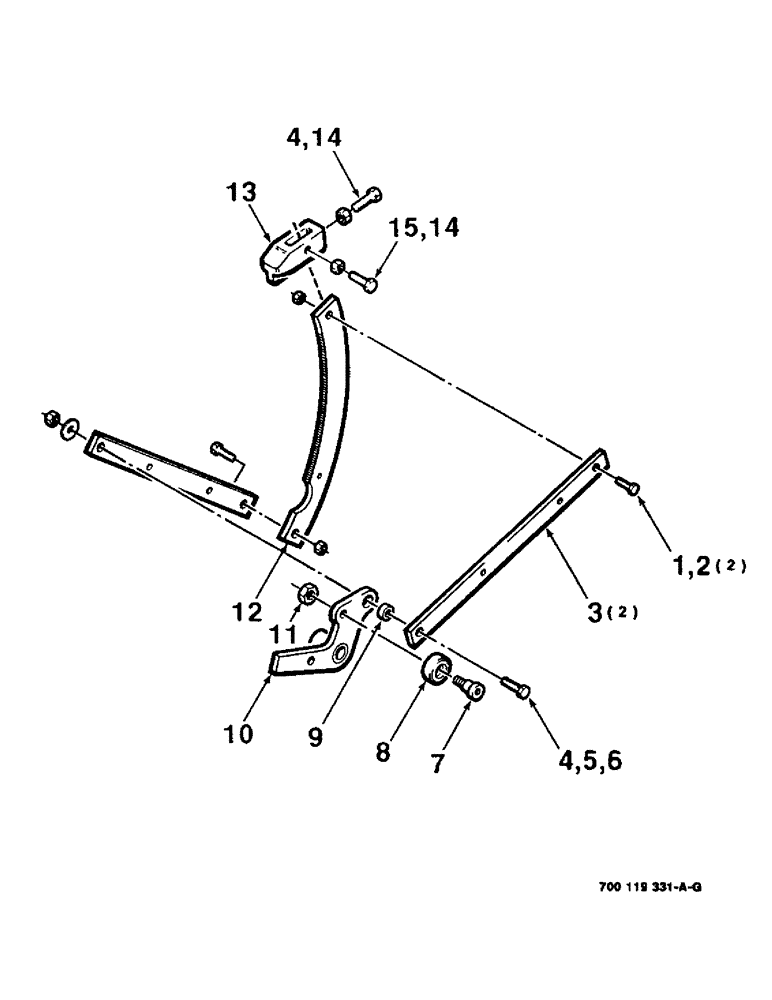

Запчасти Case IH 8545 (6-06) - SPACER CAM ASSEMBLY (14) - BALE CHAMBER

1

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

2шт.

2

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

2шт.

3

700108471

STRAP

- trip (S.N. CFH0044501 thru CFH0044829)

2шт.

700121071

STRAP

- trip (S.N. CFH0044830 and later)

2шт.

4

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

2шт.

5

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

1шт.

6

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

1шт.

7

121-126

STEP BOLT,Hex Skt, 5/16" - 18 - 3/8" x 3/8"

SCREW, Hex Soc Hd, Shdr, 5/16"-18 x 3/8"

1шт.

8

700119470

ROLLER

- cam

1шт.

9

6823769

SPACER

1шт.

10

700119468

ARM

- clutch

1шт.

11

425-145

JAM NUT,Jam, 5/16"-18, G5

1шт.

12

700108473

CAM

1шт.

13

1661234

CLAMP

- stop

1шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

15

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.
