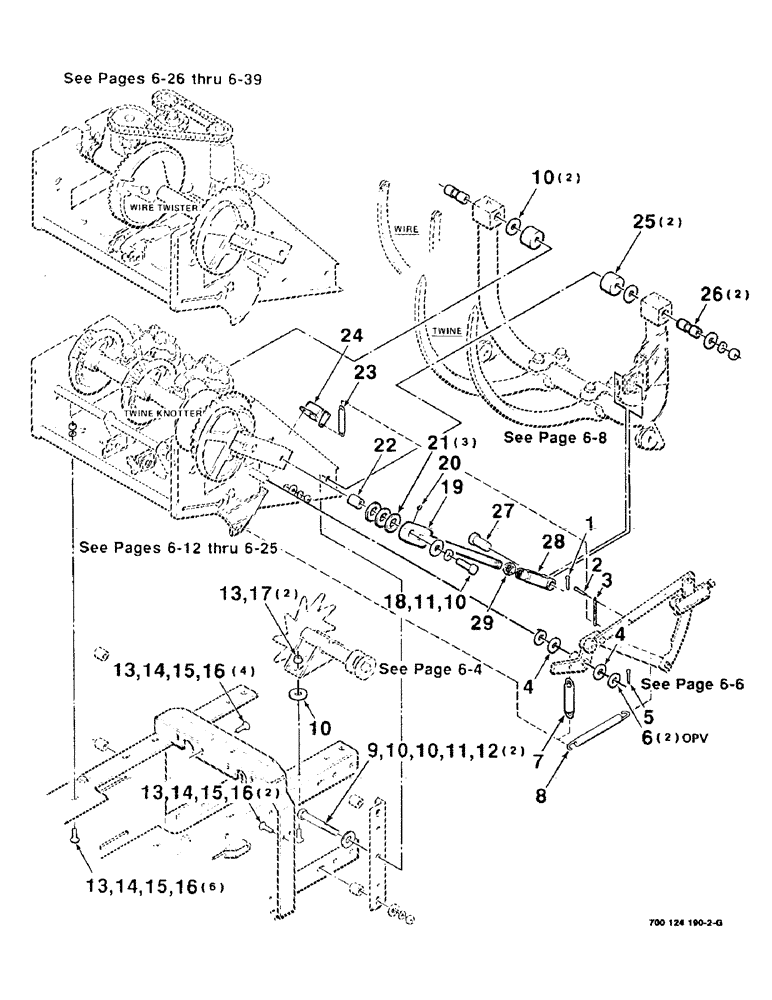

Запчасти Case IH 8545 (6-02) - KNOTTER, TWISTER, NEEDLE MOUNTING & CONTROL ASSEMBLY (14) - BALE CHAMBER

1

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

1шт.

2

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

1шт.

3

6853469

JACK

CHAIN - baler counter

1шт.

4

705566

WASHER

3/4 HARDENED PLAIN WASHER

2шт.

5

432-1220

COTTER PIN,3/16" x 1 1/4"

3/16" x 1 1/4"

1шт.

6

95-81182

WASHER,0.81" ID x 1.25" OD x 0.07" Thk

3/4 X 14 GAUGE NRMB

2шт.

7

758268

SPRING

1шт.

8

700712484

SPRING

1шт.

9

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

2шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

8шт.

11

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

3шт.

12

425-1010

NUT,5/8"-11, G5

2шт.

13

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

14шт.

14

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

15

492-11038

LOCK WASHER,3/8"

12шт.

16

425-106

NUT,3/8"-16, Cl 5

12шт.

17

231-5146

FLANGE NUT,3/8"-16

2шт.

18

413-1036

BOLT,Hex, 5/8" - 11 x 2-1/4", Gr 5

5/8-11 X 2-1/4 C

1шт.

19

6853675

ROD

- link

1шт.

20

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

21

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

3шт.

22

6554034

BUSHING

1шт.

23

7058993

SPRING

1шт.

24

7894470

COUNTER

- bale

1шт.

25

285726

SPACER

2шт.

26

700119335

BUSHING,17.48mm ID x 25.4mm OD x 66.5mm L

- frame, needle

2шт.

27

A35113

PIN

3/4 X 2 CLEVIS PIN

1шт.

28

066332

CLEVIS

1шт.

29

425-1412

JAM NUT,Jam, 3/4"-10, G5

3/4-10 HEX JAM NUT

1шт.
