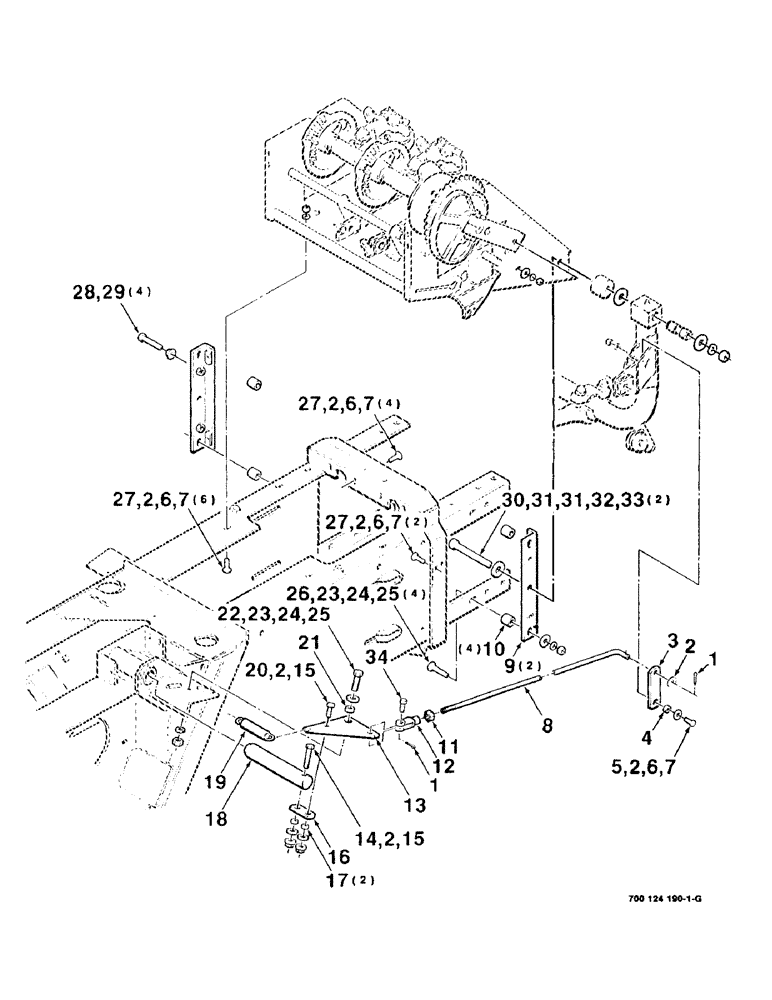

Запчасти Case IH 8545 (5-12) - PLUNGER STOP ASSEMBLY - TWINE AND WIRE (SAFETY) (13) - FEEDER

1

432-812

COTTER PIN,3/4" OAL x 1/8" W

PIN, SPLIT (COTTER), 1/8" x 3/4"

2шт.

2

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

16шт.

3

700112421

LINK

1шт.

4

6823769

SPACER

BUSHING

1шт.

5

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

6

492-11038

LOCK WASHER,3/8"

13шт.

7

425-106

NUT,3/8"-16, Cl 5

13шт.

8

700112418

STEM

ROD - link

1шт.

9

700112414

ANGLE BAR

ANGLE

2шт.

10

700112432

SPACER

4шт.

11

425-116

NUT,3/8" - 24, Gr 5

Hex 3/8"-24, G5

1шт.

12

213-126

ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"

CLEVIS, ADJUSTABLE, 3/8"-24 x 2 1/2"

1шт.

13

700112424

LARGE PLATE

PLATE - stop

1шт.

14

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

1шт.

15

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

2шт.

16

700112422

LINK

AGE - stop

1шт.

17

6553614

SPACER

BUSHING

2шт.

18

700112423

SHAFT

- plunger, stop

1шт.

19

700758888

SPRING

1шт.

20

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

1шт.

21

700708272

BUSHING

1шт.

22

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

1шт.

23

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

5шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

25

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

26

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

4шт.

27

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

12шт.

28

702654

BOLT,Hex, 1/2" - 13 x 2 1/4", Gr 5, Full Thd

1/2-13 X 2-1/4 FTC

4шт.

29

231-5148

FLANGE NUT,Flg, USR, 1/2"-13

4шт.

30

413-1088

BOLT,Hex, 5/8" - 11 x 5-1/2", Gr 5

5/8-11 X 5-1/2 C

2шт.

31

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

32

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

33

425-1010

NUT,5/8"-11, G5

2шт.

34

141-11

CLEVIS PIN,3/8" x 1 1/4"

3/8 X 1-1/4 CLEVIS PIN

1шт.
