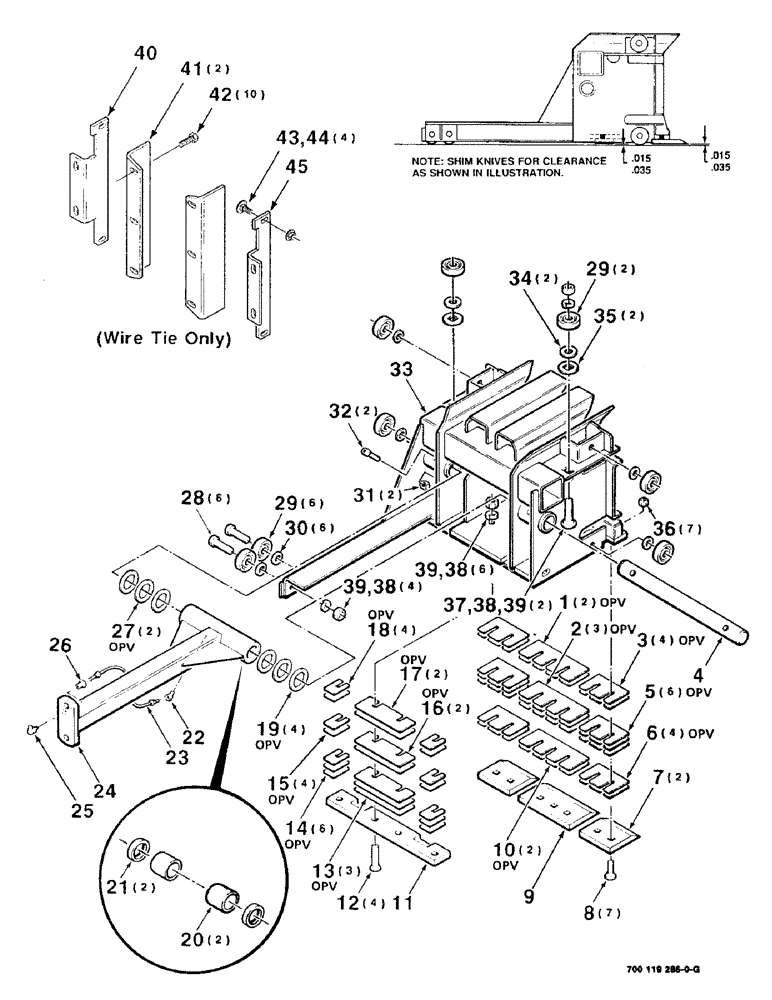

Запчасти Case IH 8545 (5-10) - PLUNGER ASSEMBLY (13) - FEEDER

1

700108260

ADJUSTING PLATE

SHIM

2шт.

2

700108263

ADJUSTING PLATE

SHIM

3шт.

3

700112468

ADJUSTING PLATE

SHIM

4шт.

4

700112320

SHAFT

1шт.

5

700112467

SHIM

6шт.

6

700112465

ADJUSTING PLATE

SHIM

4шт.

7

700706004

KNIFE

- outer

2шт.

8

419-3828

CARRIAGE BOLT,1/2” - 13 x 1-3/4” L, Gr 5

1/2-13 X 1-3/4 PLOW BOLT

7шт.

9

700703917

KNIFE

- inner

1шт.

10

700108181

ADJUSTING PLATE

SHIM

2шт.

11

700703916

KNIFE

- plunger

1шт.

12

164-83

HEX SOC SCREW,Flat Hd, 5/8" - 11 x 2

5/8-11 X 2 HSFCHCS

4шт.

13

700115416

SHIM

3шт.

14

700115419

SHIM

6шт.

15

700115418

SHIM

4шт.

16

700115415

SHIM

2шт.

17

700115417

SHIM

2шт.

18

700115420

SHIM

4шт.

19

52712

BUSHING

1-1/2 X 18 GAUGE NRMB

4шт.

20

6186506

BUSHING,38.2mm ID x 44.58mm OD x 50.8mm L

- bronze

2шт.

21

700706006

OIL SEAL

- grease

2шт.

22

222-1030

ELBOW,222-1030

45 DEGREE ELBOW - male

1шт.

23

700706326

LINE

- grease

1шт.

24

700112346

PITMAN

ASSEMBLY (Includes items 20 and 21)

1шт.

25

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

1шт.

26

700701485

HYD CONNECTOR

FITTING - grease line

1шт.

27

52282

BUSHING

1-1/2 X 14 GAUGE NRMB

2шт.

28

700706003

SCREW

5/8-11 X 2 HEX BOLT - special

6шт.

29

667925R91

ROLLER BEARING,0.628" ID x 2" OD x 15 mm

- cylindrical

8шт.

30

52233

BUSHING

5/8 X 14 GAUGE NRMB

6шт.

31

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

2шт.

32

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

3/8-16 X 2 HSHCS

2шт.

33

700119287

PLUNGER

WA

1шт.

34

1660993

WASHER

5/8 WASHER - special HT

2шт.

35

6210371

SQ HOLE WASHER

5/8 WASHER - special

2шт.

36

230-4118

LOCK NUT,1/2"-13, GA

1/2-13 HTLN GR/B

7шт.

37

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

38

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

12шт.

39

425-1010

NUT,5/8"-11, G5

12шт.

40

700119798

EXTENSION

- outer, right (Wire tie only)

1шт.

41

700119799

EXTENSION

- center (Wire tie only)

2шт.

42

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

10шт.

43

707224

BOLT,#3, 5/16" - 18 x 3/4", Gr 5

5/16-18 X 3/4 PLOW BOLT

4шт.

44

232-5315

FLANGE NUT,Flg, 5/16"-18

5/16-18 HFTLN

4шт.

45

700119797

EXTENSION

- outer, left (Wire tie only)

1шт.
