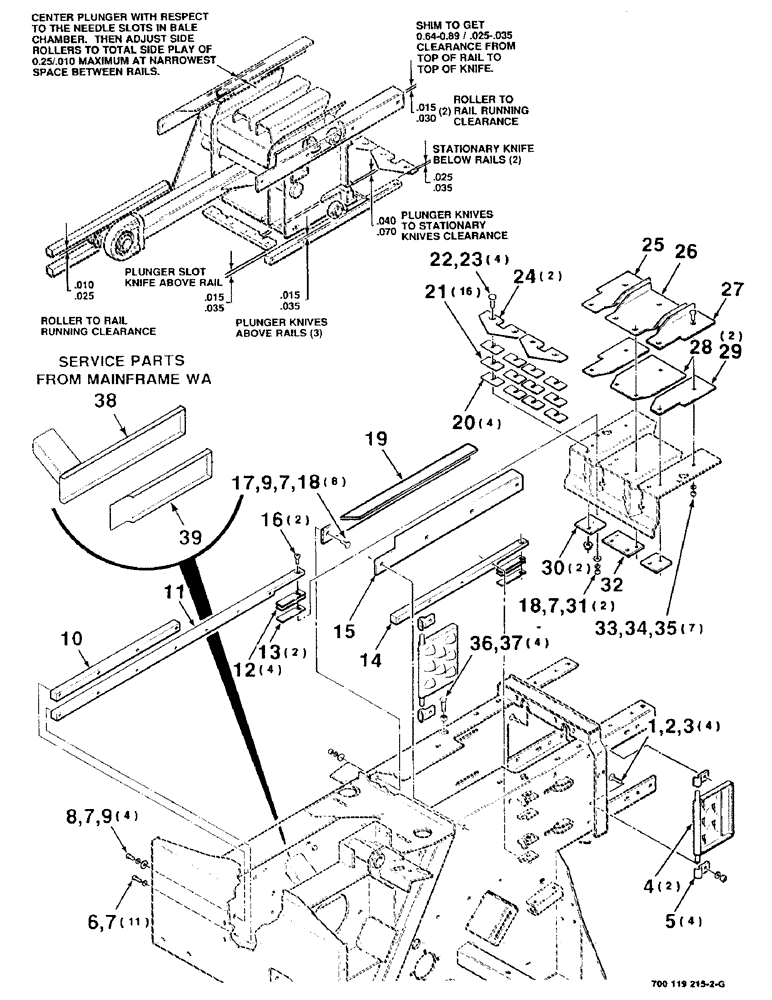

Запчасти Case IH 8545 (5-08) - PLUNGER GUIDES, RAILS AND KNIFE ASSEMBLIES (13) - FEEDER

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

4шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

4шт.

4

700112529

DOOR

- tension

2шт.

5

700112507

CLIP

- door

4шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

11шт.

7

492-11038

LOCK WASHER,3/8"

25шт.

8

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

4шт.

9

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

12шт.

10

700112521

RAIL

- upper, right, front

1шт.

11

700112520

RAIL

- lower, right

1шт.

12

700108719

SHIM

4шт.

13

700108718

SHIM

2шт.

14

700112519

RAIL

- lower, left

1шт.

15

700112361

ANGLE

- left

1шт.

16

61-43820

HEX SOC SCREW,FLAT, 3/8" x 1-1/4"

3/8-16 X 1-1/4 HSFCHCS

2шт.

17

707042

BOLT,#3, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 PLOW BOLT

8шт.

18

425-106

NUT,3/8"-16, Cl 5

10шт.

19

700112362

ANGLE

- right

1шт.

20

700112533

ADJUSTING PLATE

SHIM - .010

4шт.

21

700108406

ADJUSTING PLATE

SHIM - .018

16шт.

22

707448

BOLT

1/2-13 X 1-1/2 PLOW BOLT

4шт.

23

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

4шт.

24

700706213

KNIFE

- stationary

2шт.

25

700112517

PLATE

- right

1шт.

26

700112469

PLATE

- center

1шт.

27

700112518

PLATE

- left

1шт.

28

700115442

PLATE

- center, left

1шт.

29

700115443

LARGE PLATE

PLATE - side, lower

2шт.

30

700112513

REINFORCEMENT

- knife, side

2шт.

31

495495-11041

3/8 NARROW PLAIN WASHER

2шт.

32

700112514

REINFORCEMENT

- knife, center

1шт.

33

19-520

CARRIAGE BOLT,#3, 5/16" - 18 x 1 1/4", Gr 5

5/16-18 X 3/4 PLOW BOLT

7шт.

34

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

35

425-105

NUT,5/16"-18, G5

7шт.

36

873083

SCREW

3/8-16 X 1-1/2 FTC

4шт.

37

425-146

JAM NUT,3/8" - 16, Gr 5

3/8-16 HEX JAM NUT

4шт.

38

700112543

CHANNEL

WA - right

1шт.

39

700112542

CHANNEL

WA - left

1шт.
