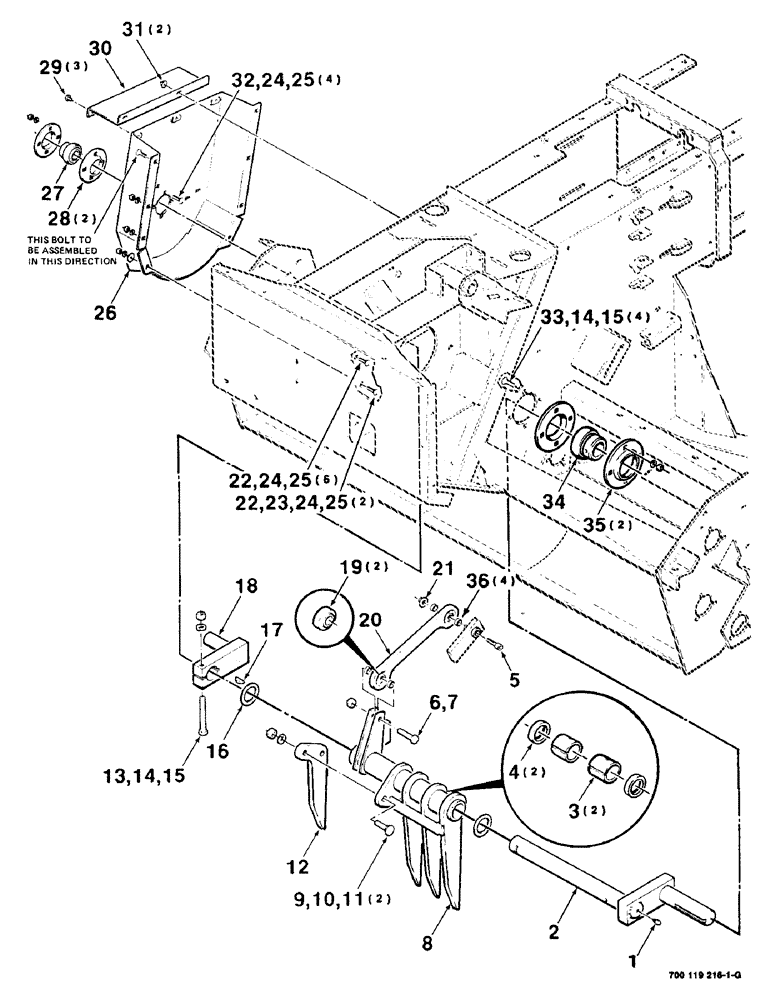

Запчасти Case IH 8545 (5-02) - CHARGE AND STUFFER ASSEMBLY (13) - FEEDER

1

219-1

LUBE NIPPLE,1/8" - 27 NPTF

1/8-27 ZERK - special, short

1шт.

2

700119278

CRANK

1шт.

3

700706007

BUSHING,50.84mm ID x 55.58mm OD x 51.05mm L

- bearing

2шт.

4

700706005

OIL SEAL

SEAL - grease

2шт.

5

121-511

HEX SOC SCREW,Shldr, 1/2" - 13 - 5/8" x 1 1/2"

1/2-13 X 5/8 X 1-1/2 HSHSS

1шт.

6

701771

SUPPORT

5/8-11 X 2-1/4 C

1шт.

7

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

8

700119281

FORK

- stuffer (Includes items 3 and 4)

1шт.

9

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

11

425-1010

NUT,5/8"-11, G5

2шт.

12

700112340

FINGER

- stuffer

1шт.

13

413-860

BOLT,Hex, 1/2" - 13 x 3-3/4", Gr 5

1шт.

14

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

15

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

16

52548

SPECIAL WASHER

2 X 14 GAUGE NRMB

1шт.

17

126-36

WOODRUFF KEY,#23, 5/16" x 1 3/8"

1шт.

18

700112322

ARM

- right

1шт.

19

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING - cylindrical (S.N. CFH-0044501 thru CFH-0045810)

2шт.

616154R92

BEARING, ROLLER, CYL,16 mm

Bearing - cylindrical (S.N. CFH-0045811 and later)

2шт.

20

700112352

LINK

ASSEMBLY (Includes item 19) (S.N. CFH-0044501 thru CFH-0045810)

1шт.

700124690

LINK

ASSEMBLY (Includes item 19) (S.N. CFH-0045811 and later)

1шт.

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

(S.N. CFH-0045811 and later)

4шт.

21

231-5348

FLANGE NUT,Flg, 1/2"-13

1/2-13 HFTLN GR/G

1шт.

22

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

8шт.

23

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

2шт.

24

492-11038

LOCK WASHER,3/8"

12шт.

25

425-106

NUT,3/8"-16, Cl 5

12шт.

26

700119284

SUPPORT

SHIELD - support

1шт.

27

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - spherical

1шт.

28

181383C1

FLANGED BEARING,72.01mm ID x 122.24mm OD

FLANGE - bearing

2шт.

29

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

30

700112351

SHIELD

- top

1шт.

31

231-5146

FLANGE NUT,3/8"-16

2шт.

32

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

4шт.

33

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

4шт.

34

700704263

SPHERICAL BEARING,55.562 mm ID x 100 mm OD x 48.4 mm

BEARING - spherical

1шт.

35

714360

FLANGED BEARING

FLANGE - bearing

2шт.

36

700124038

BUSHING,16.27mm ID x 34.92mm OD x 10mm L

4шт.
