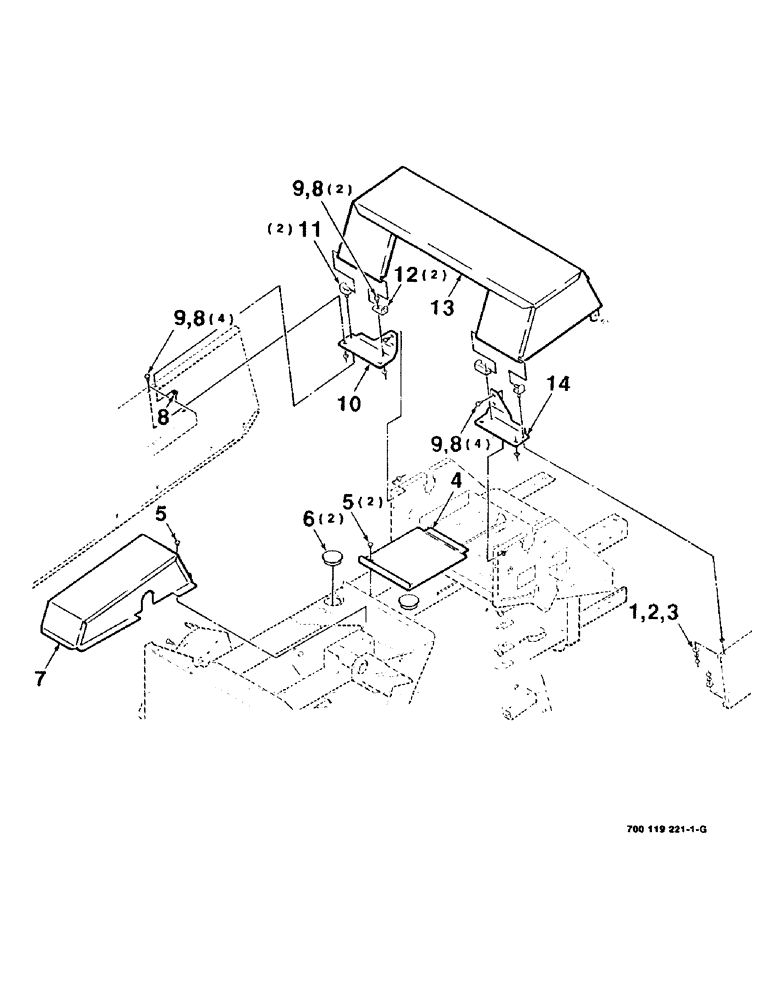

Запчасти Case IH 8545 (7-18) - SHIELDS ASSEMBLY - TOP (12) - MAIN FRAME

1

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

1шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

425-105

NUT,5/16"-18, G5

1шт.

4

700112277

COVER

- knotter

1шт.

5

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

3шт.

6

700703259

PLUG

- hole

2шт.

7

700112249

SHIELD

- top, plunger

1шт.

8

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

11шт.

9

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

10шт.

10

700119380

SUPPORT

- shieled, right

1шт.

11

700112258

SUPPORT

PIVOT - outer

2шт.

12

700108535

SUPPORT

PIVOT - inner

2шт.

13

700119492

SHIELD

- top, knotter

1шт.

14

700119379

SUPPORT

- shield, left

1шт.
