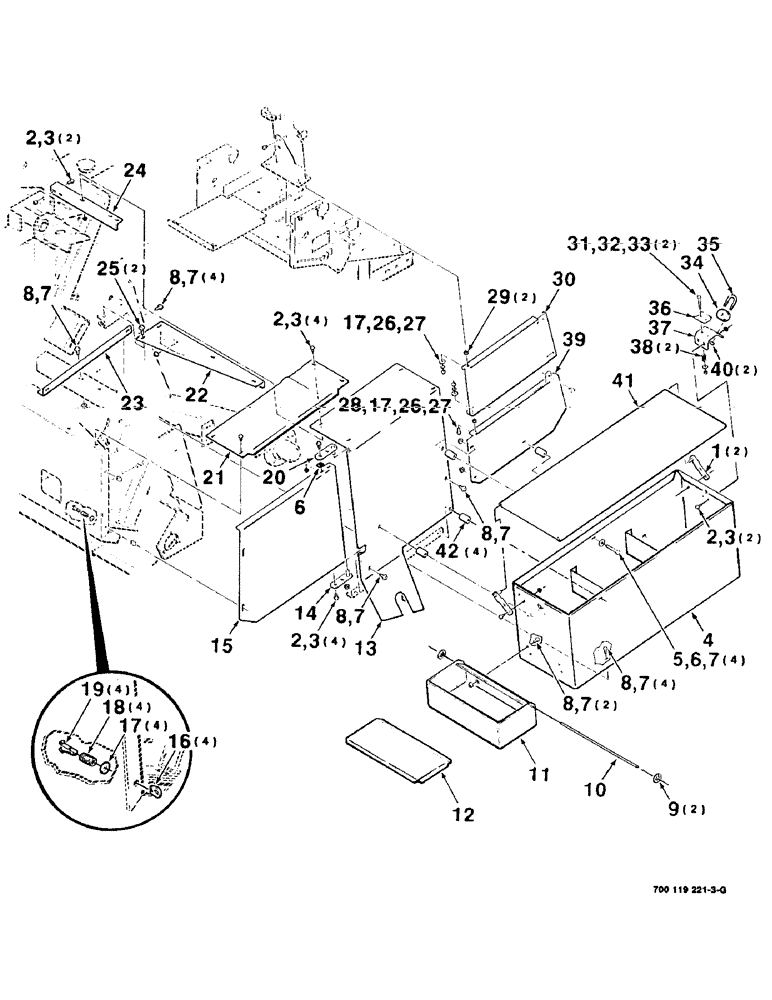

Запчасти Case IH 8545 (7-10) - SHIELDS AND TWINE BOX ASSEMBLY - LEFT (12) - MAIN FRAME

1

700108543

SUPPORT

HINGE - pivot

2шт.

2

121-115

SERRATED BOLT,Hex, 5/16" - 18 x 3/4"

12шт.

3

231-5145

SERRATED NUT,Flg, USR, 5/16"-18

NUT, Flg, USR, 5/16"-18

12шт.

4

700108537

BOX

- twine

1шт.

5

413-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

4шт.

6

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

5шт.

7

231-5146

FLANGE NUT,3/8"-16

17шт.

8

409-7612

BOLT,3/8"-16 x 1.09" OAL

3/8-16 X 3/4 HWHMS

13шт.

9

700707858

SNAP RING

RING - retainer

2шт.

10

700108570

ROD

- hinge

1шт.

11

700108566

TOOL BOX

BOX - tool

1шт.

12

700108569

LID

- tool box

1шт.

13

700119381

PANEL

- center, left

1шт.

14

700112262

SUPPORT

- pivot, left

1шт.

15

700112254

DOOR

- front, lower

1шт.

16

7894967

HANDLE

- latch

4шт.

17

496-21034

WASHER,11/32" x 11/16" x 0.89", HDN

6шт.

18

7758212

SPRING

- compression

4шт.

19

7894975

CLIP

- latch

4шт.

20

700112264

SUPPORT

- pivot, upper

1шт.

21

700119386

SHIELD

- front

1шт.

22

700119398

ANGLE

- left

1шт.

23

700119387

ANGLE

1шт.

24

700112272

ANGLE

1шт.

25

154273C1

BOLT,Hex Serr, 3/8" - 16 x 1", Spcl

3/8-16 X 1 HFSS

2шт.

26

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

27

425-105

NUT,5/16"-18, G5

2шт.

28

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

C Hex, 5/16"-18 x 3/4", G5, Full Thd

1шт.

29

700112261

BUSHING

2шт.

30

700112255

DOOR

- upper rear, left

1шт.

31

113-12

BOLT,Hex, 1/4" - 20 x 2-1/2", Gr 5

1/4-20 X 2-1/2 C

2шт.

32

496-11028

WASHER,9/32" x 5/8" x .065, HDN

1/4 HARDENED PLAIN WASHER

2шт.

33

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

34

700711131

GUIDE

- twine

1шт.

35

51200861

U-BOLT

5/16-18 U-BOLT

1шт.

36

6549869

SUPPORT

CLAMP - tension

1шт.

37

700119383

SUPPORT

- tension, twine

1шт.

38

58925

SPRING

- compression

2шт.

39

700112266

PANEL

- lower rear, left

1шт.

40

230-4215

NUT,5/16"-18, GA

5/16-18 HCLN

2шт.

41

700108541

LID

- twine box

1шт.

42

6605315

HUB

SPACER

4шт.
