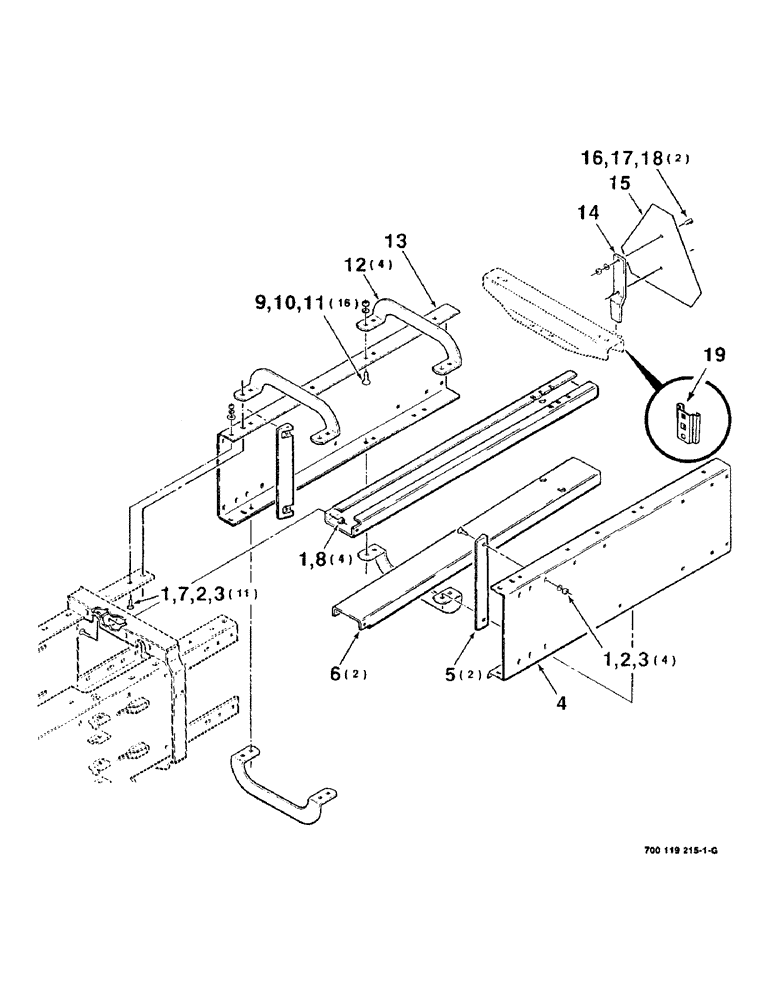

Запчасти Case IH 8545 (7-06) - BALE CHAMBER ASSEMBLY (12) - MAIN FRAME

1

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

19шт.

2

492-11038

LOCK WASHER,3/8"

15шт.

3

425-106

NUT,3/8"-16, Cl 5

15шт.

4

700119273

CHANNEL

- side, left

1шт.

5

837971

CASTING

RESISTOR - bar, hay

2шт.

6

700119272

RAIL

- compression

2шт.

7

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

11шт.

8

232-5316

FLANGE NUT,Flg, 3/8"-16

3/8-16 HFTLN GR/G

4шт.

9

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

16шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

16шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

16шт.

12

700108401

SUPPORT

SPREADER - chamber

4шт.

13

700119274

CHANNEL

- side, right

1шт.

14

7020597

BRACKET

STAKE - mounting, SMV (EXTRA)

1шт.

15

7020589

EMBLEM

- SMV (EXTRA)

1шт.

16

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

17

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

2шт.

18

225-14110

NUT,#10-24

2шт.

19

A59457

BRACKET

SOCKET - lamp bracket

1шт.
