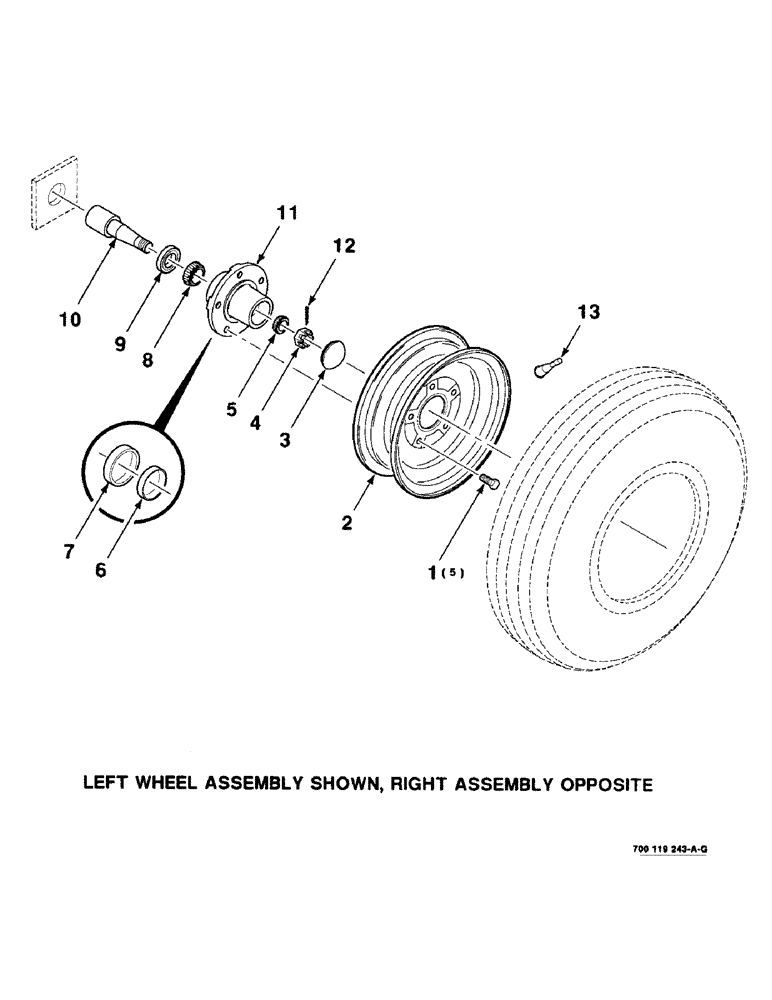

Запчасти Case IH 8545 (7-04) - WHEEL AND HUB ASSEMBLY (12) - MAIN FRAME

1

T52730

WHEEL BOLT

9/16-18 X 1-1/8 WHEEL BOLT

5шт.

2

700707949

RIM

WHEEL - 14 X 8 INCH

1шт.

700710278

WHEEL

- 15 X 10 INCH

1шт.

3

T27814

CAP

- hub

1шт.

4

704346

BRACKET

1-14 SLOTTED HEX JAM NUT

1шт.

5

E13994

BEARING,25.4mm ID

CONE - bearing, outer

1шт.

6

50104

BEARING CUP,50.01mm OD

CUP - bearing, outer

1шт.

7

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Inner

1шт.

8

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE - bearing, inner

1шт.

9

844571

SEAL

- grease

1шт.

10

700119247

SHAFT

SPINDLE

1шт.

11

6280788

HUB

(Includes Items 6 and 7)

1шт.

12

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

13

827402

VALVE

STEM - valve (Used With 700707949 Wheel)

1шт.

A38261

VALVE

STEM - valve (Used With 700710278 Wheel)

1шт.
