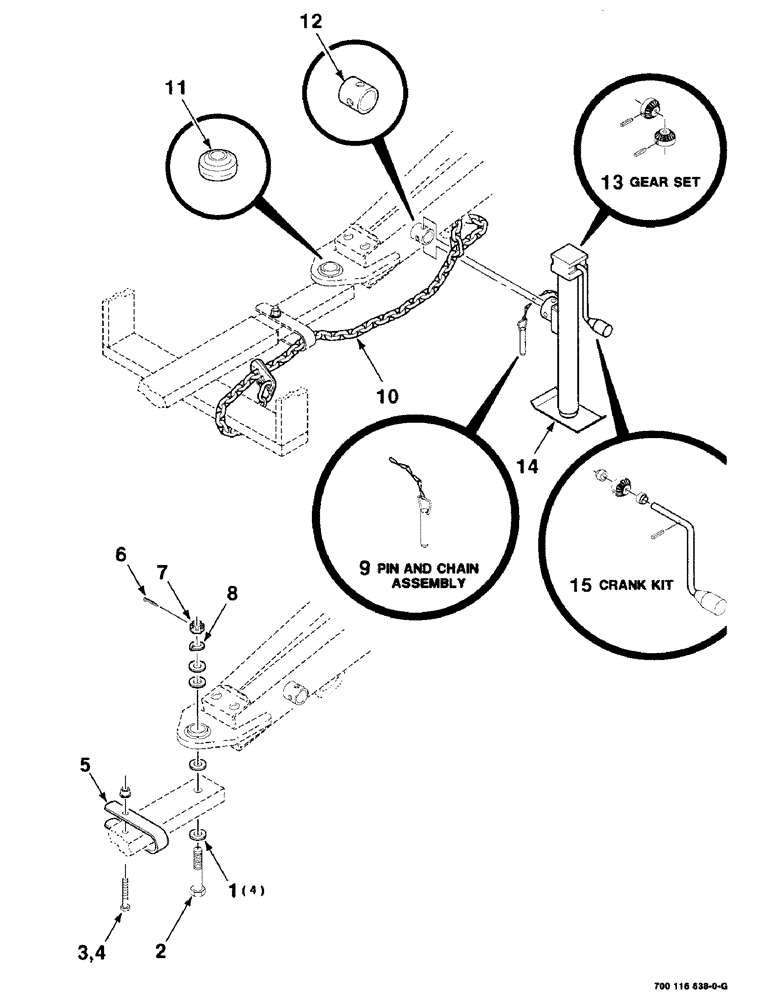

Запчасти Case IH 8545 (7-02) - HITCH, JACK AND CHAIN ASSEMBLY (12) - MAIN FRAME

1

495-11106

WASHER,1", SAE

4шт.

2

700108808

SCREW

1-8 X 5-1/2 C, special

1шт.

3

413-1056

BOLT,Hex, 5/8" - 11 x 3-1/2", Gr 5

1шт.

4

230-41110

LOCK NUT,5/8"-11, GA

5/8-11 HTLN GR/B

1шт.

5

148558C1

CLEVIS

- safety, chain

1шт.

6

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

7

425-1216

SLOTTED NUT,Hex, 1"-8, G5

1шт.

8

192-171

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

9

700709409

LINK CHAIN

PIN AND CHAIN ASSEMBLY

1шт.

10

700705598

CHAIN (CE)

SAFETY - chain

1шт.

11

D51609

BALL JOINT

BEARING - tongue

1шт.

12

6227391

TUBE,2" OD, 1.88" Length

- wa

1шт.

13

700702059

KIT

GEAR SET

1шт.

14

700709385

JACK

1шт.

15

700702060

CRANKED HANDLE

CRANK KIT

1шт.
