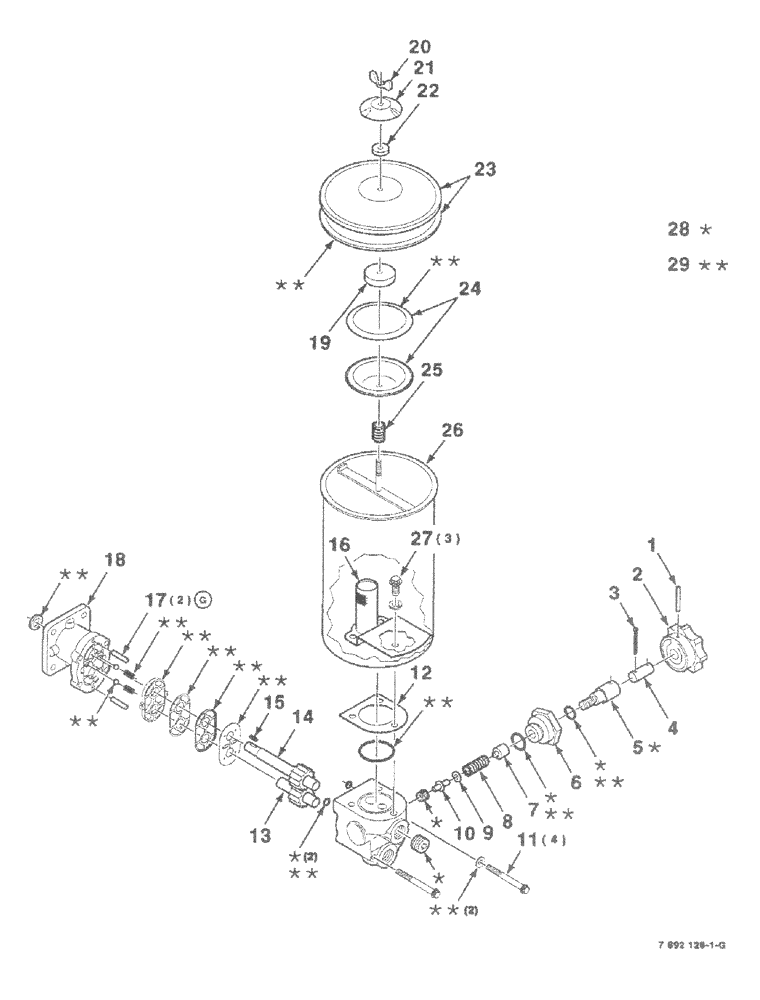

Запчасти Case IH 8545 (8-04) - BALE TENSIONER HYDRAULIC PUMP AND RESERVOIR ASSEMBLY (07) - HYDRAULICS

7892128

VALVE

HYDRAULIC PUMP and RESERVOIR COMPLETE

1шт.

1

19711R1

PIN,3.17mm OD x 31.75mm L, Coiled

1шт.

2

8040552

KNOB

1шт.

3

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

1шт.

4

8040545

ROD

connecting

1шт.

5

8040560

ADJUSTMENT SCREW

adjusting

1шт.

6

8040578

PLUG

ASSEMBLY (includes o-ring)

1шт.

7

8040503

GUIDE

spring

1шт.

8

8040495

SPRING

1шт.

9

F12267

WASHER

SHIM

1шт.

10

H83931

VALVE POPPET

POPPET ASSEMBLY

1шт.

11

166-11

12 PT SCREW,Flg, 1/4" - 20 x 2 1/4", Gr 8

1/4-20 x 2-1/4 F12PS, GR 5 NP

4шт.

12

668399R1

GASKET

reservoir

1шт.

13

668389R91

GEAR

idler

1шт.

14

668388R91

GEAR

drive

1шт.

15

8040487

KEY

1шт.

16

668398R91

FILTER

ASSEMBLY

1шт.

17

37-148

DOWEL,1/4" x 1/2"

PIN dowel

2шт.

18

H646265

LARGE PLATE

PLATE ASSEMBLY front

1шт.

19

668396R1

CAP

filter

1шт.

20

129-409

WING NUT,1/4"-20

NUT, WING, 1/4"-20

1шт.

21

668394R1

CAP

breather

1шт.

22

668400R1

FILTER

air

1шт.

23

668393R11

COVER

LID AND GASKET reservoir

1шт.

24

668395R11

FILTER

AND GASKET ASSEMBLY

1шт.

25

823148C1

SPRING

compression

1шт.

26

CAS2700072

RESERVOIR, HYDRAULIC

RESERVOIR hydraulic

1шт.

27

166-23

12 PT SCREW,Flg, 5/16" - 18 x 5/8", Gr 8

5/16-18 x 5/8 F12PS, GR 8 NP

3шт.

28

8040479

LARGE PLATE

KIT back plate repair, includes items in art marked with an asterisk

1шт.

29

200420C91

SEAL KIT

seal repair, includes items in art marked with a double asterisk

1шт.
