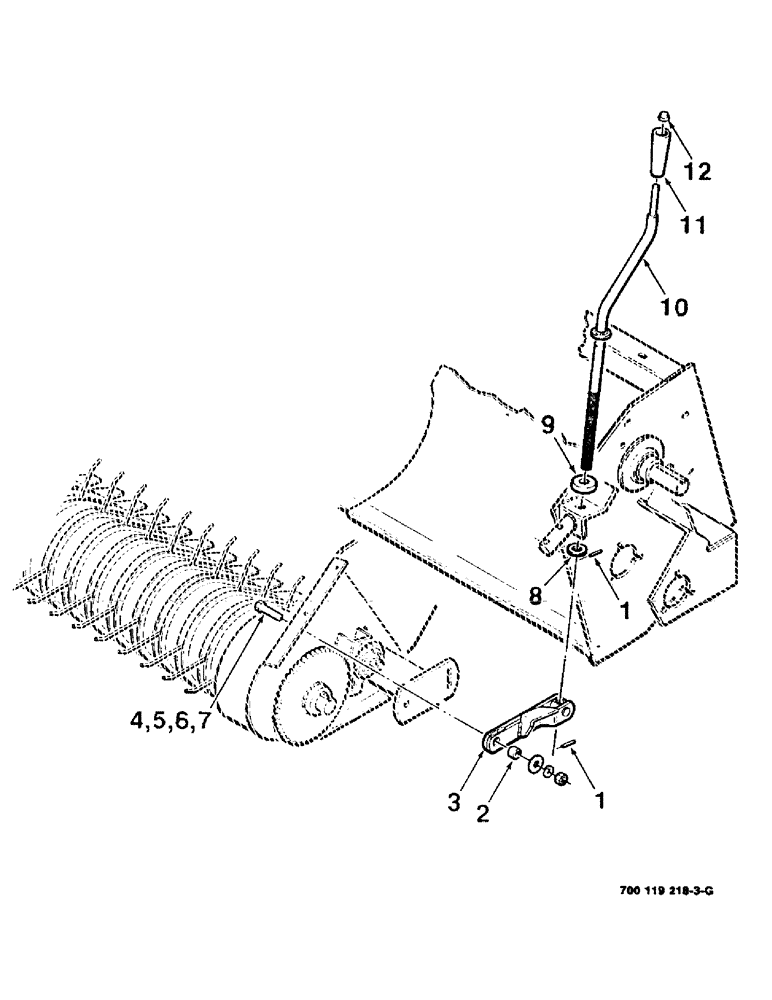

Запчасти Case IH 8545 (3-12) - PICKUP LIFT ASSEMBLY Pickup

1

38-31016

PIN,5/32" x 1", Coiled

2шт.

2

6131916

BUSHING

1шт.

3

700119805

ARM

- lift

1шт.

4

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

.5 X 2.5 UNC GR5 YZD

1шт.

5

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

6

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

7

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

8

495-11081

WASHER,3/4", SAE

1шт.

9

700706024

WASHER

SPACER

1шт.

10

700119810

CRANK

- pickup

1шт.

11

700709466

HANDLE

- crank

1шт.

12

700709464

NUT

3/8-16 NUT - push on

1шт.
