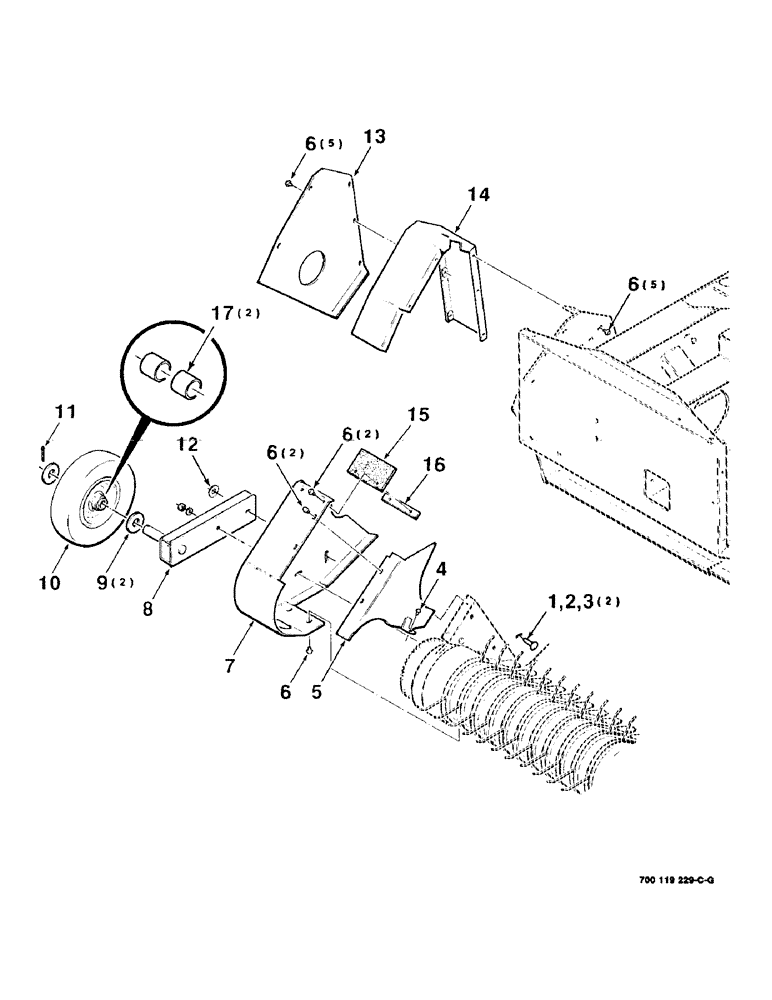

Запчасти Case IH 8545 (3-10) - PICKUP SHIELDS AND GAUGE WHEEL ASSEMBLY - RIGHT Pickup

1

433-820

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/4", Gr 5

1/2-13 X 1-1/4 RHSNB

2шт.

2

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

3

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

2шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

5

700119376

SHIELD

- lower, right

1шт.

6

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

15шт.

7

700119371

SHIELD

- lower, outer

1шт.

8

700112269

STRUT

- gauge, wheel

1шт.

9

495-21106

WASHER,1"

1 HARDENED PLAIN WASHER

2шт.

10

700707953

RIM

WHEEL - gauge (Includes item 17)

1шт.

11

432-1224

COTTER PIN,3/16" x 1-1/2"

3/16" x 1 1/2"

1шт.

12

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

13

700119365

SHIELD

- upper, outer

1шт.

14

700119359

SHIELD

- cap

1шт.

15

700119363

SHIELD

- rubber

1шт.

16

700119367

STRAP

- shield

1шт.

17

700712011

BUSHING

2шт.
