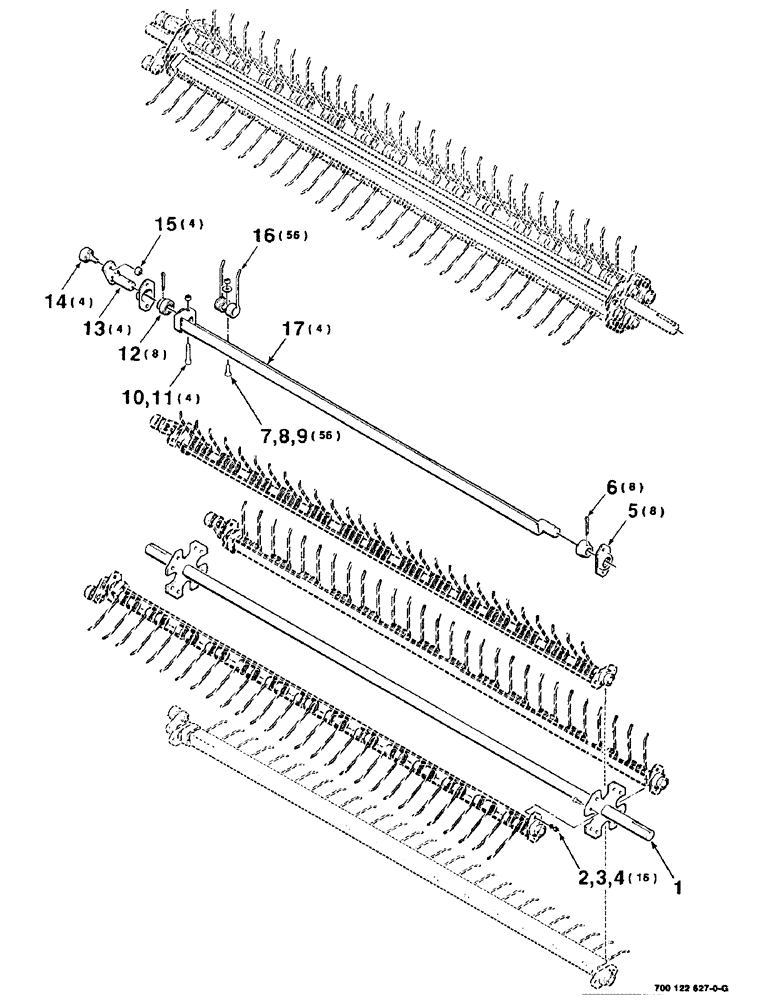

Запчасти Case IH 8545 (3-06) - PICKUP ROTOR ASSEMBLY Pickup

1

700108609

ROTOR

SHAFT - rotor

1шт.

2

111-360

CARRIAGE BOLT,Short NK, 3/8"-16 x 3/4", G5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 3/4", G5

16шт.

3

492-11038

LOCK WASHER,3/8"

16шт.

4

425-106

NUT,3/8"-16, Cl 5

16шт.

5

700108622

FLANGED BEARING

FLANGE - bearing

8шт.

6

432-1632

COTTER PIN,1/4" x 2"

Pin, Split (Cotter), 1/4" x 2"

8шт.

7

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

56шт.

8

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

56шт.

9

231-5146

FLANGE NUT,3/8"-16

56шт.

10

61-636

HEX SOC SCREW,3/8"-16 x 2 1/4"

3/8-16 X 2-1/4 HSHCS

4шт.

11

230-4216

LOCK NUT,3/8"-16, GA

3/8-16 HCLN

4шт.

12

710392

BEARING, ROLLER, CYL,27.33 mm ID x 47.09 mm OD x 25.4 mm

BEARING - cylindrical

8шт.

13

700108618

ARM

- crank, tine bar

4шт.

14

700705612

CAM FOLLOWER

BEARING - cam follower

4шт.

15

700707867

NUT

1/2-20 HFTLN GR/G

4шт.

16

700703860

REEL TINE,Coiled, 2 Prongs, 164mm L

TINE - double

56шт.

17

700122625

ANGLE

CHANNEL WA - tine

4шт.
