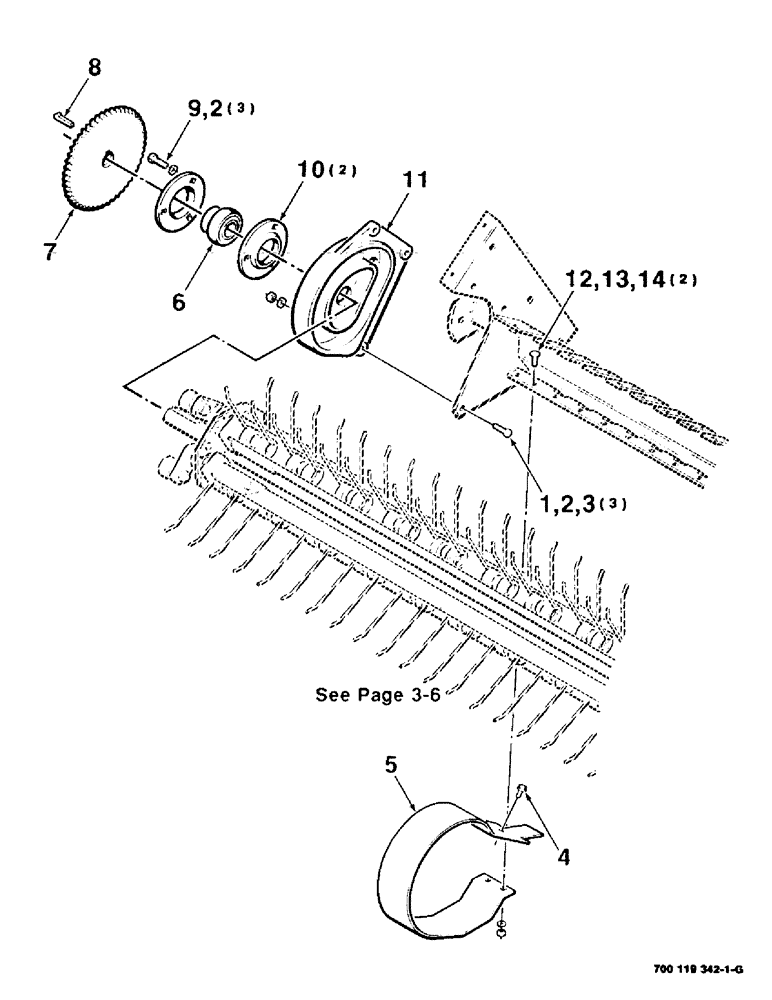

Запчасти Case IH 8545 (3-04) - PICKUP AND CAM ASSEMBLY - RIGHT Pickup

1

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

C Hex, 3/8"-16 x 1 1/4", G5, Full Thd

3шт.

2

492-11038

LOCK WASHER,3/8"

6шт.

3

425-106

NUT,3/8"-16, Cl 5

3шт.

4

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

1шт.

5

700112389

SHIELD

WRAPPER - end

1шт.

6

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- spherical

1шт.

7

700119343

PINION

SPROCKET WA - 50B44 tooth

1шт.

8

761379

BUCKET TOOTH KEY

5/16 X 5/16 X 1-3/4 GIB KEY

1шт.

9

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3шт.

10

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

11

700116125

HOUSING

TRACK - cam

1шт.

12

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

2шт.
