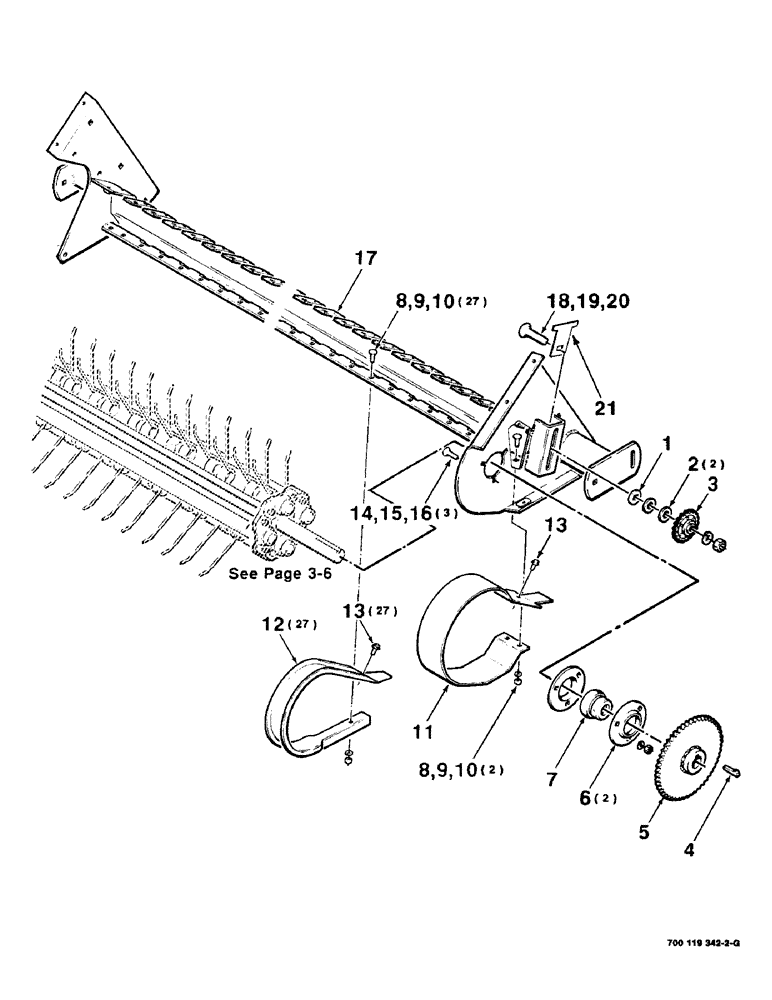

Запчасти Case IH 8545 (3-02) - PICKUP FRAME AND WRAPPER ASSEMBLY - LEFT Pickup

1

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

2

95-81101

WASHER,0.52" ID x 0.88" OD x 0.07" Thk

1/2 X 14 GA. NRMB

2шт.

3

565442R91

SPROCKET

- idler, 50B17 tooth

1шт.

4

761379

BUCKET TOOTH KEY

5/16 X 5/16 X 1-3/4 GIB KEY

1шт.

5

700119343

PINION

SPROCKET WA - 50B44 tooth

1шт.

6

T27207

FLANGED BEARING

FLANGE - bearing

2шт.

7

571588R92

BALL BEARING,1.3755" ID x 72 mm OD x 1"

- spherical

1шт.

8

433-512

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 5

29шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

29шт.

10

425-105

NUT,5/16"-18, G5

29шт.

11

700112389

SHIELD

WRAPPER - end

1шт.

12

700112379

GUARD

WRAPPER - tine

27шт.

13

409-7512

BOLT,Hex Flg, 5/16" - 18 x 3/4", Spcl

Hex Flg, 5/16-18 x 3/4", Serr

28шт.

14

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

15

492-11038

LOCK WASHER,3/8"

3шт.

16

425-106

NUT,3/8"-16, Cl 5

3шт.

17

700119344

FUNNEL

FRAME WA - pickup

1шт.

18

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 X 2-1/4 RHSNB

1шт.

19

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

1шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

21

700127966

STOP

- idler

1шт.
