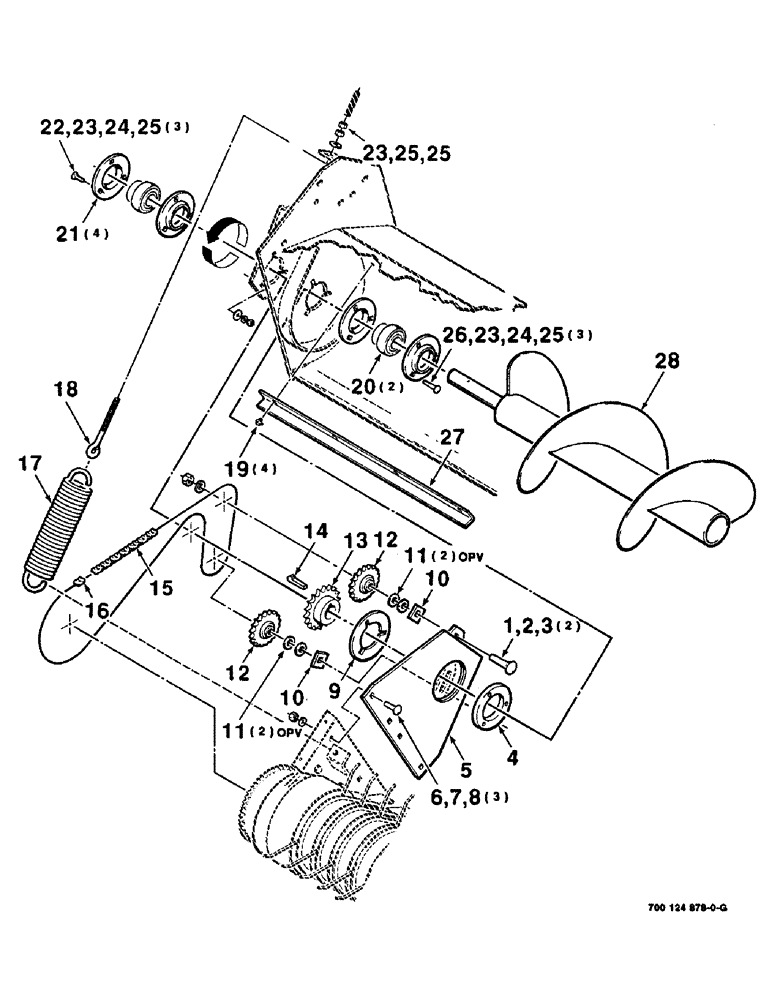

Запчасти Case IH 8545 (2-28) - AUGER AND AUGER DRIVE ASSEMBLY - RIGHT (S.N. CFH0045726 AND LATER) Driveline

1

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

425-1010

NUT,5/8"-11, G5

2шт.

4

700119327

SPACER

- pivot

1шт.

5

700119322

LARGE PLATE

PLATE WA - pivot, right

1шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

3шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

9

700119326

FLANGE

1шт.

10

700115572

SQ HOLE WASHER

- special

2шт.

11

52233

BUSHING

5/8 X 14 GAUGE NRMB

4шт.

12

211623C91

SPROCKET

- idler, 50B17

2шт.

13

700124886

SPROCKET ASSY.

SPROCKET WA - 50B18

1шт.

14

61424

KEY

1/4 X 1-1/4 KEY - gib

1шт.

15

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller #50

1шт.

16

47530

LINK, CONNECTING

LINK - connector, #50 R/C

1шт.

17

700706020

SPRING

- extension

1шт.

18

51200285

SCREW

3/8-16 X 7 EYEBOLT

1шт.

19

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

20

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - spherical

2шт.

21

T27207

FLANGED BEARING

FLANGE

4шт.

22

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

23

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

24

492-11038

LOCK WASHER,3/8"

6шт.

25

425-106

NUT,3/8"-16, Cl 5

8шт.

26

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

3шт.

27

700119328

STRIPPER

- auger

1шт.

28

700124885

AUGER

WA - right

1шт.
