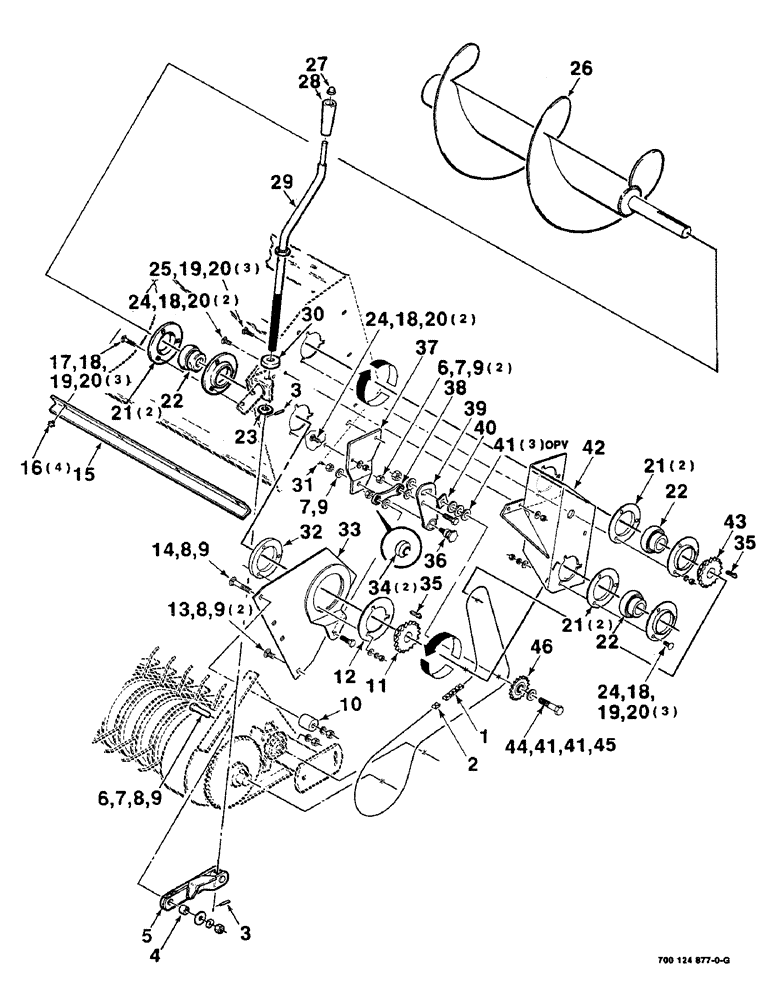

Запчасти Case IH 8545 (2-26) - AUGER AND PICKUP DRIVE ASSEMBLY - LEFT (S.N. CFH0045726 AND LATER) Driveline

1

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50

1шт.

2

47530

LINK, CONNECTING

LINK - connector, #50

1шт.

3

38-31016

PIN,5/32" x 1", Coiled

2шт.

4

6131916

BUSHING

1шт.

5

700119805

ARM

WA - lift

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

3шт.

7

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

4шт.

8

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

9

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

7шт.

10

700127961

STOP

1шт.

11

700124886

SPROCKET ASSY.

SPROCKET WA - 50B18

1шт.

12

700119326

FLANGE

1шт.

13

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

14

591514R1

CARRIAGE BOLT,1/2" - 13 x 2 3/4", Grade 5

1/2-13 X 2-3/4 RHSNB

1шт.

15

700119328

STRIPPER

- auger

1шт.

16

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

17

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

3шт.

18

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

10шт.

19

492-11038

LOCK WASHER,3/8"

9шт.

20

425-106

NUT,3/8"-16, Cl 5

13шт.

21

T27207

FLANGED BEARING

FLANGE

6шт.

22

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - spherical

3шт.

23

495-11081

WASHER,3/4", SAE

1шт.

24

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

7шт.

25

433-620

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 1/4", Gr 5

BOLT, CARRIAGE, Short NK, 3/8"-16 x 1 1/4", G5

3шт.

26

700124879

AUGER

WA - left

1шт.

27

700709464

NUT

3/8 NUT PUSHON

1шт.

28

700709466

HANDLE

- crank

1шт.

29

700119810

CRANK

WA - pickup

1шт.

30

700706024

WASHER

SPACER

1шт.

31

219-93

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

1шт.

32

700119327

SPACER

- pivot

1шт.

33

700127964

LARGE PLATE

PLATE WA - pivot, left

1шт.

34

710079

BALL BEARING,12.738 mm ID x 25.4 mm OD x 12.7 mm

BUSHING - spherical

2шт.

35

61424

KEY

1/4 X 1-1/4 KEY - gib

2шт.

36

700112405

SCREW

- shoulder

1шт.

37

700127958

LARGE PLATE

PLATE

1шт.

38

700127962

LINK

ASSEMBLY (Includes item 34)

1шт.

39

700127959

ARM

WA - pivot

1шт.

40

700115572

SQ HOLE WASHER

- special

1шт.

41

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

5шт.

42

700127970

BRACKET

WA

1шт.

43

86132

SPROCKET ASSY.

SPROCKET - 50B17

1шт.

44

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

45

425-1010

NUT,5/8"-11, G5

1шт.

46

211623C91

SPROCKET

- idler, 50B17

1шт.
