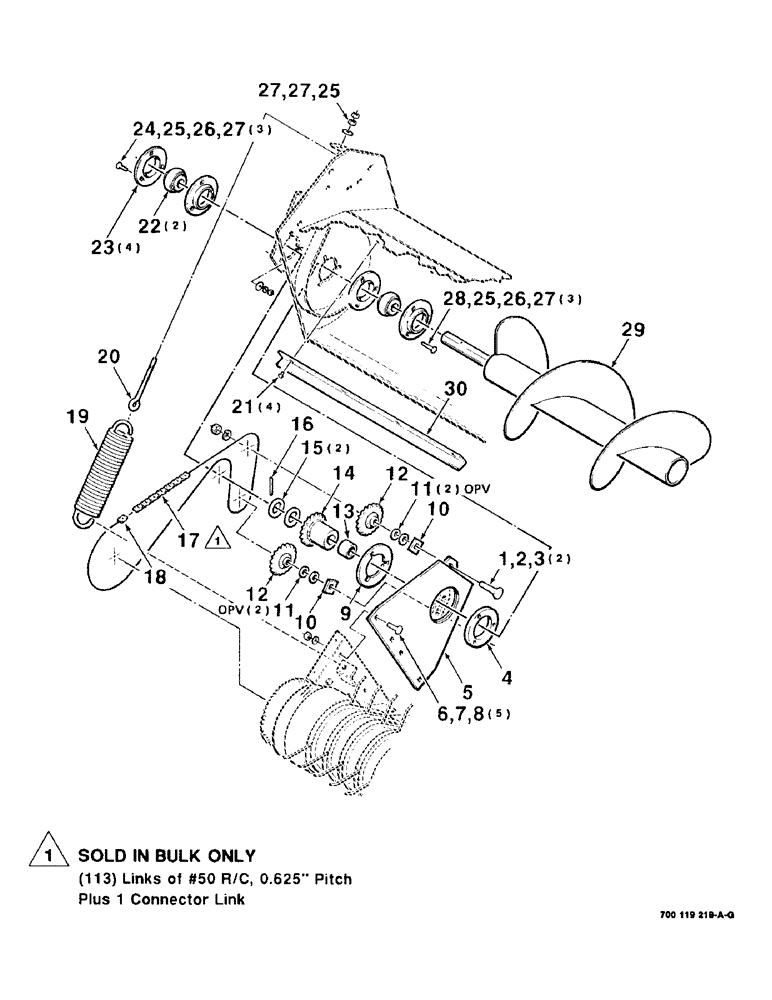

Запчасти Case IH 8545 (2-24) - AUGER AND AUGER DRIVE ASSEMBLY - RIGHT (S.N. CFH0044501 THRU CFH0045725) Driveline

1

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

2шт.

2

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

3

425-1010

NUT,5/8"-11, G5

2шт.

4

700119327

SPACER

- pivot

1шт.

5

700119322

LARGE PLATE

PLATE - pivot, right

1шт.

6

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

5шт.

7

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

8

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

5шт.

9

700119326

FLANGE

1шт.

10

700115572

SQ HOLE WASHER

- special

2шт.

11

52233

BUSHING

5/8 X 14 GA. NRMB

4шт.

12

211623C91

SPROCKET

- idler, 50B17 tooth

2шт.

13

700119309

SPACER

1шт.

14

700119329

SPROCKET

- 15B18 tooth

1шт.

15

52712

BUSHING

1-1/2 X 18 GA. NRMB

2шт.

16

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

17

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

18

1310D

LINK

- connector, #50 R/C

1шт.

19

700706020

SPRING

- extension

1шт.

20

51200285

SCREW

3/8-16 X 7 EYE BOLT

1шт.

21

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

22

713834

BUSHING

- spherical, hex bore

2шт.

23

T27207

FLANGED BEARING

FLANGE - bearing

4шт.

24

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

25

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

7шт.

26

492-11038

LOCK WASHER,3/8"

6шт.

27

425-106

NUT,3/8"-16, Cl 5

8шт.

28

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

3шт.

29

700119311

AUGER

- right

1шт.

30

700119328

STRIPPER

- auger

1шт.
