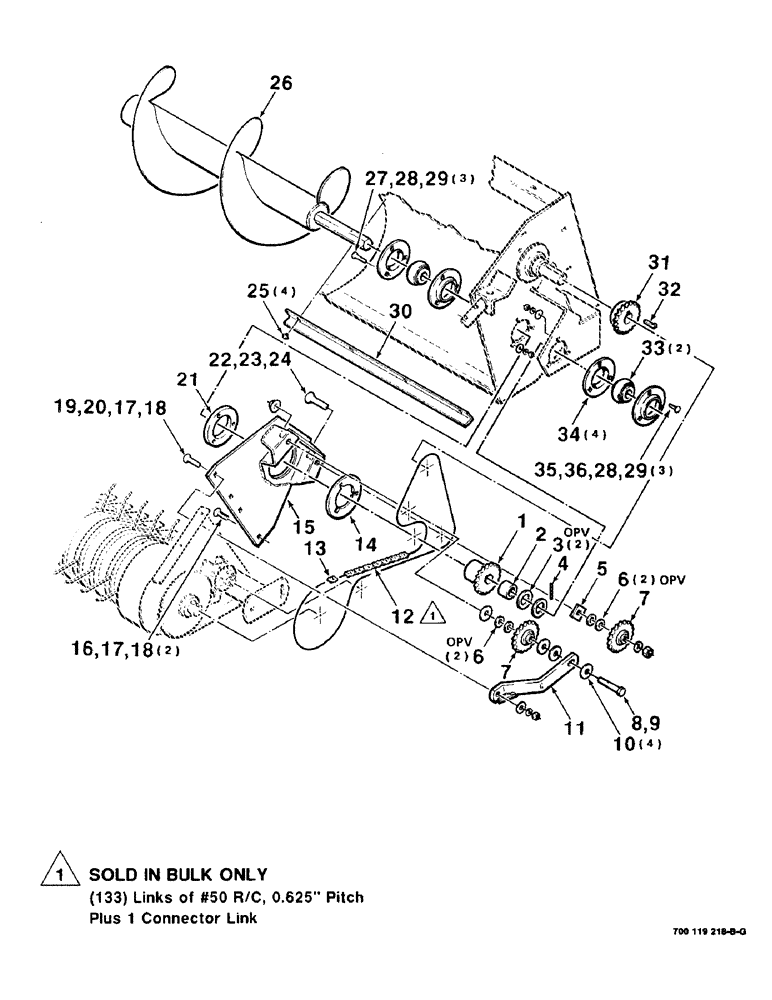

Запчасти Case IH 8545 (2-22) - AUGER AND PICKUP DRIVE ASSEMBLY - LEFT (S.N. CFH0044501 THRU CFH0045725) Driveline

1

700119329

SPROCKET

- 50B18 tooth

1шт.

2

700119309

SPACER

1шт.

3

52712

BUSHING

1-1/2 X 18 GA. NRMB

2шт.

4

138-143

LOCK PIN,1/4" x 2 1/4", Slotted

PIN, 1/4" x 2 1/4", Slotted

1шт.

5

700115572

SQ HOLE WASHER

- special

1шт.

6

52233

BUSHING

5/8 X 14 GA. NRMB

4шт.

7

211623C91

SPROCKET

- idler, 50B17 tooth

2шт.

8

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

5/8-11 X 2-3/4 C

1шт.

9

231-51410

FLANGE NUT,Flg, USR, 5/8"-11

1шт.

10

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

- 5/8" bolt size 21/32" x 1 5/16" x .150", HDN

4шт.

11

700119306

SUPPORT

STRAP - support, idler

1шт.

12

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

NOTE:THE ILLUSTRATION PAGE DRAWING OF THE CHAIN REF#12 HAS CHANGED.THE REROUTED PICKUP DRIVE CHAIN STARTED AT PIN CFH0045726.

1шт.

13

1310D

LINK

- connector, #50 R/C

1шт.

14

700119326

FLANGE

1шт.

15

700119320

LARGE PLATE

PLATE - pivot, left

1шт.

16

433-816

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1", Gr 5

1/2-13 X 1 RHSNB

2шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

3шт.

18

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

19

433-824

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 1 1/2", Gr 5

1/2-13 X 1-1/2 RHSNB

1шт.

20

495-21056

WASHER,1/2"

1/2 HARDENED PLAIN WASHER

1шт.

21

700119327

SPACER

- pivot

1шт.

22

433-1032

CARRIAGE BOLT,Sq Nk, 5/8" - 11 x 2", Gr 5

5/8-11 X 2 RHSNB

1шт.

23

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

24

425-1010

NUT,5/8"-11, G5

1шт.

25

256873

BOLT,Hex Serr, 5/16" - 18 x 1/2", 5SPL, Full Thd

4шт.

26

700119310

AUGER

- left

1шт.

27

433-628

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 1 3/4", Gr 5

3/8-16 X 1-3/4 RHSNB

3шт.

28

492-11038

LOCK WASHER,3/8"

6шт.

29

425-106

NUT,3/8"-16, Cl 5

6шт.

30

700119328

STRIPPER

- auger

1шт.

31

86132

SPROCKET ASSY.

SPROCKET - 50B17 tooth

1шт.

32

61424

KEY

1/4 X 1/4 X 1-1/4 GIB KEY

1шт.

33

700709621

SPHERICAL BEARING,31.78mm Hex x 72mm OD x 25mm W

- spherical, hex bore

2шт.

34

T27207

FLANGED BEARING

FLANGE - bearing

4шт.

35

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

36

496-11041

WASHER,13/32" x 13/16" x .065", HDN

3/8 HARDENED PLAIN WASHER

3шт.
