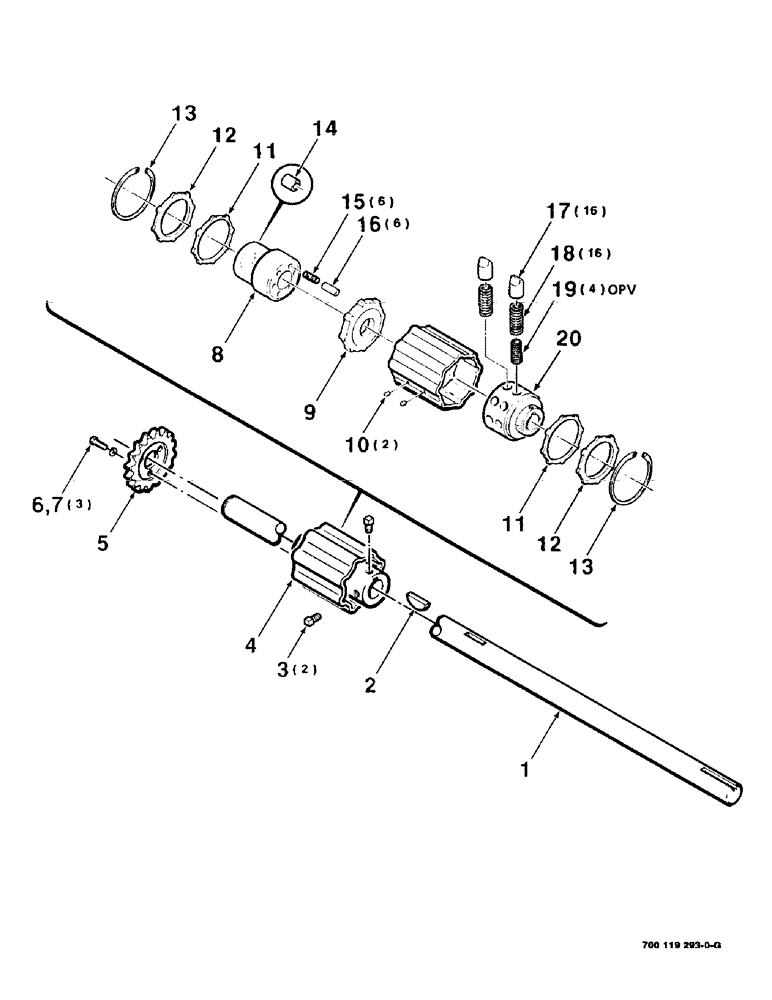

Запчасти Case IH 8545 (2-20) - PICKUP OVERRUNNING SLIP CLUTCH ASSEMBLY Driveline

1

700119294

SHAFT

- drive, pickup

1шт.

2

126-147

WOODRUFF KEY,#28, 5/16" x 2 1/8", HT

1шт.

3

85-610

SET SCREW,Sq Hd, 3/8"-16 x 5/8"

3/8-16 X 5/8 CPSQHSS

2шт.

4

700709001

CLUTCH

ASSEMBLY (Includes items 8 thru 20)

1шт.

5

700119295

SPROCKET ASSY.

SPROCKET - 60A16 tooth

1шт.

6

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

3шт.

7

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

8

700709148

HUB

- overrunning (Includes item 14)

1шт.

9

700709146

LARGE PLATE

PLATE - drive, overrunning

1шт.

10

700710520

NIPPLE, LUBE

ZERK - special

2шт.

11

700703410

SEALING RING

RING - seal

2шт.

12

700703407

SEALING RING

RING - thrust

2шт.

13

700703404

SNAP RING,M80, Int

RING - retainer

2шт.

14

700709149

BUSHING

- bronze

1шт.

15

7814049

SPRING

- compression

6шт.

16

7814056

PIN

6шт.

17

700703406

CAM

- ratchet

16шт.

18

700703408

SPRING

- outer

16шт.

19

700703409

SPRING

- inner

4шт.

20

700709145

HUB

- ratchet

1шт.
