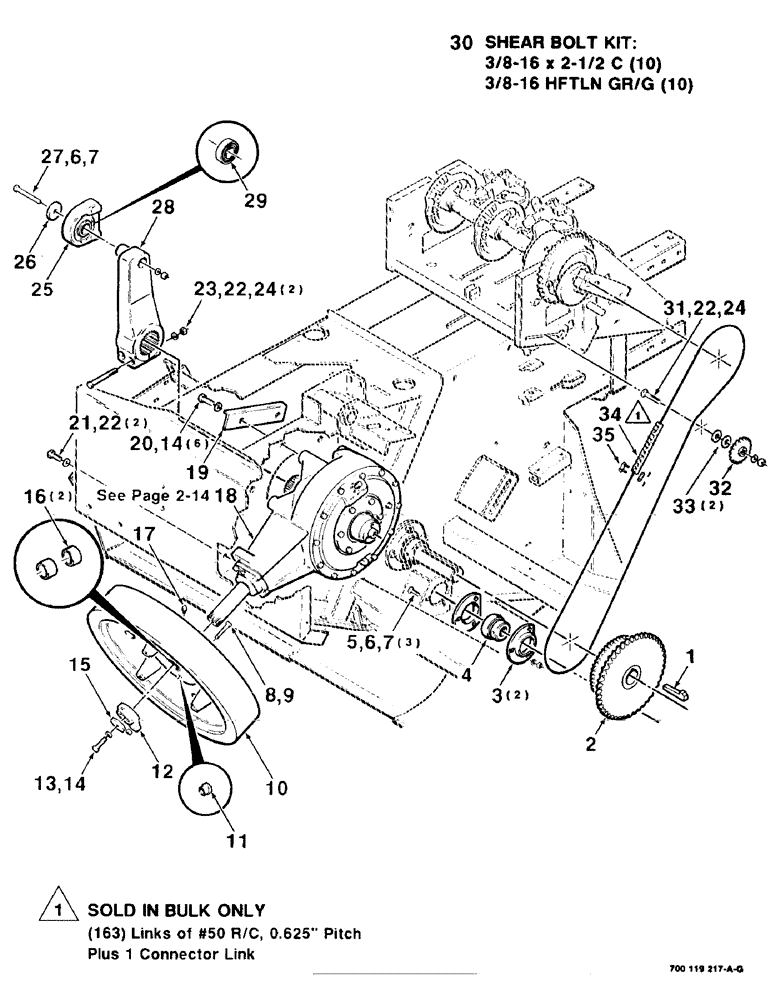

Запчасти Case IH 8545 (2-14) - DRIVE ASSEMBLY (GEARBOX, PLUNGER AND KNOTTER) Driveline

1

61747

KEY

1/2 X 1/2 X 2-1/2 GIB KEY

1шт.

2

700119296

PINION

SPROCKET WA - double 40 tooth and 44 tooth

1шт.

3

51200755

FLANGE

- bearing

2шт.

4

565672R92

SPHERICAL BEARING,1.2505" ID x 72 mm OD x 1"

BEARING - spherical

1шт.

5

434-616

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5

3/8-16 X 1 RHSNB

3шт.

6

492-11038

LOCK WASHER,3/8"

4шт.

7

425-106

NUT,3/8"-16, Cl 5

4шт.

8

413-640

BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5

1шт.

9

231-4116

NUT,3/8"-16, GB

3/8-16 HTLN GR/B

1шт.

10

700119304

FLYWHEEL

ASSEMBLY (Includes items 11 and 16)

1шт.

11

6855555

SLEEVE

- shear

1шт.

12

700119303

ARM

- shear bolt

1шт.

13

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

14

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

7шт.

15

6855423

WASHER

1шт.

16

8052052

BRONZE BUSHING

BEARING - bronze

2шт.

17

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

18

700119392

GEARBOX ASSY

GEARBOX ASSEMBLY

1шт.

19

700112232

ANGLE

STRAP

1шт.

20

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

6шт.

21

413-816

BOLT,Hex, 1/2" - 13 x 1", Gr 5

2шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

5шт.

23

413-880

BOLT,Hex, 1/2" - 13 x 5", Gr 5

1/2-13 X 5 C

2шт.

24

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

3шт.

25

700112336

BEARING ASSY,38.11mm ID

BEARING HOUSING ASSEMBLY (Includes item 29)

1шт.

26

6875314

WASHER

1шт.

27

113-252

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

1шт.

28

700112218

CRANK

ARM - crank

1шт.

29

700706182

SPHERICAL BEARING,38.113 mm ID x 90 mm OD x 26.67 mm

BEARING - spherical

1шт.

30

700116639

KIT, SHEARBOLT, PAK

SHEAR BOLT KIT - package includes: 7701899 (10) and 704734 (10)

1шт.

31

433-836

CARRIAGE BOLT,Sq Nk, 1/2" - 13 x 2 1/4", Gr 5

1/2-13 x 2-1/4 RHSNB

1шт.

32

565442R91

SPROCKET

- idler, 17 tooth

1шт.

33

495-11066

WASHER,5/8", SAE

5/8 NARROW PLAIN WASHER

2шт.

34

1791D

CHAIN (AG),#50, 192 Links x 15.88mm = 3048mm

CHAIN - roller, #50 (10 foot bulk)

1шт.

35

1310D

LINK

- connector, #50 R/C

1шт.
