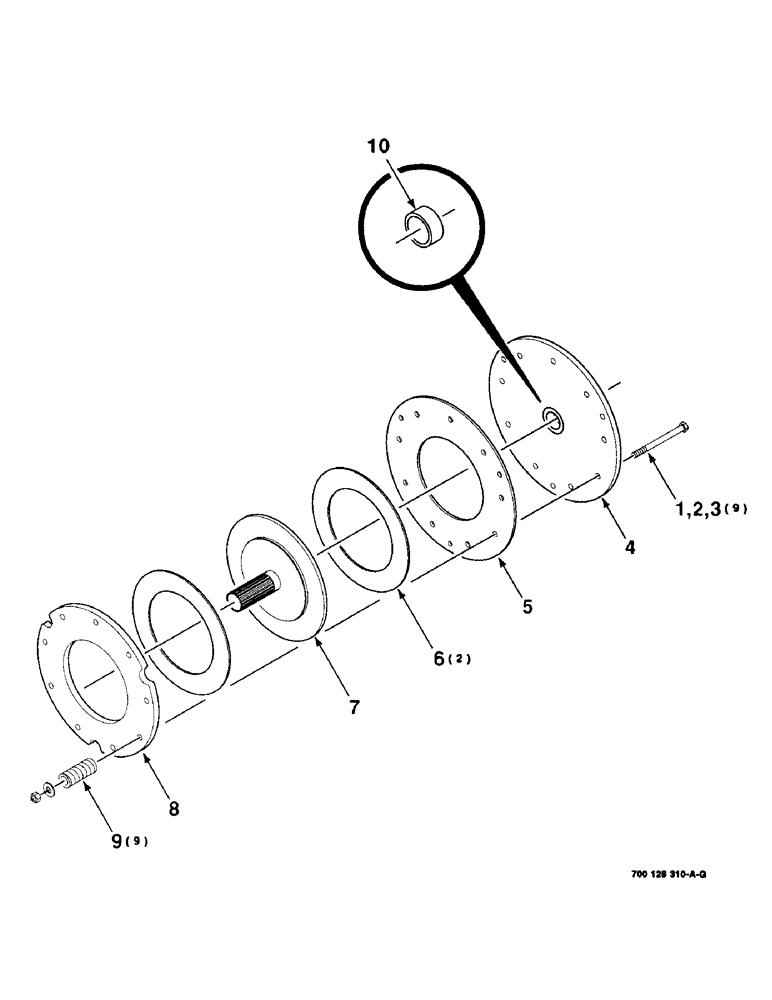

Запчасти Case IH 8545 (2-12) - CLUTCH ASSEMBLY (S.N. CFH0045226 AND LATER) Driveline

1

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

3/8-16 X 4-1/2 C

9шт.

2

495-21044

WASHER,3/8"

9шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8 LIGHT HEX STOP NUT

9шт.

4

700128311

LARGE PLATE

PLATE WA - mounting, clutch (Includes item 10)

1шт.

5

700128313

LARGE PLATE

PLATE - inner, pressure

1шт.

6

700710946

CLUTCH PLATE

DISC - clutch

2шт.

7

700128315

ROTOR

WA - clutch

1шт.

8

700128317

LARGE PLATE

PLATE - outer, pressure

1шт.

9

700707442

SPRING

- compression

9шт.

10

852749

BRONZE BUSHING

BUSHING - bronze

1шт.
