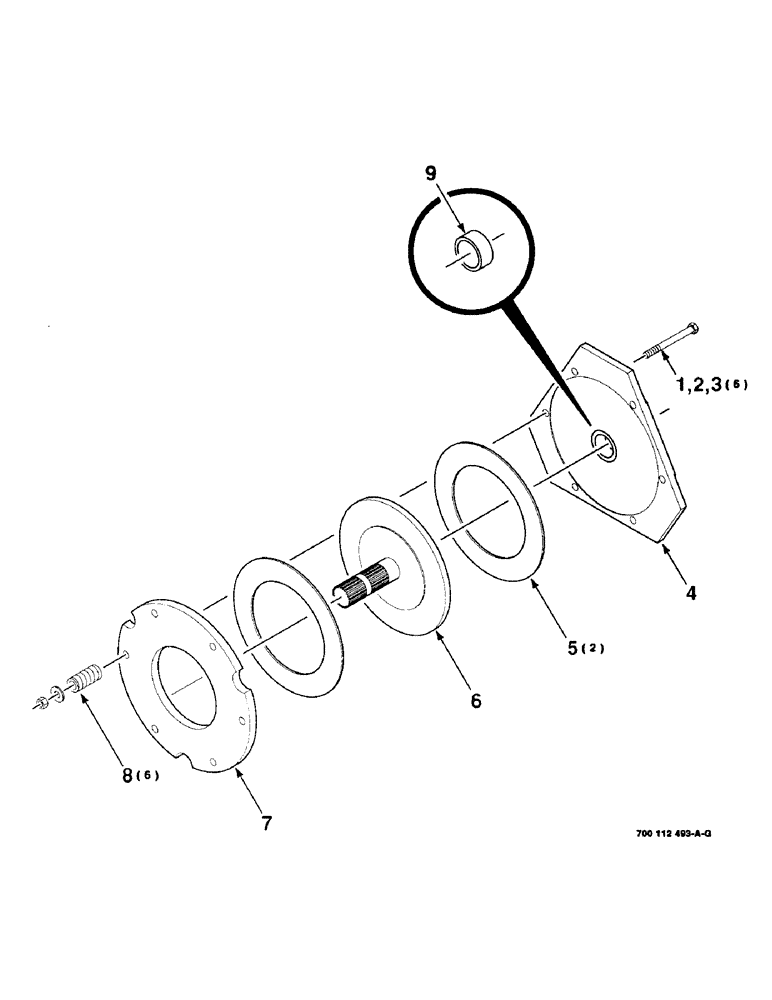

Запчасти Case IH 8545 (2-10) - CLUTCH ASSEMBLY (S.N. CFH0045101 THRU CFH0045225) Driveline

1

7772767

SCREW,Hex, 3/8" - 16 x 3 1/2", Gr 5

3/8-16 X 3-1/2 C

6шт.

2

495-21044

WASHER,3/8"

6шт.

3

231-1406

LOCK NUT,3/8"-16, GB

3/8 LIGHT HEX STOP NUT

6шт.

4

700112497

PLATE

WA - mounting clutch (Includes item 9)

1шт.

5

700710945

CLUTCH PLATE,126.75mm ID x 203.2mm OD x 3.18mm Thk

DISC - clutch

2шт.

6

700112494

DISC

ROTOR WA - clutch

1шт.

7

1662964

LARGE PLATE

PLATE - outer, pressure

1шт.

8

58107

SPRING

- compression

6шт.

9

852749

BRONZE BUSHING

BUSHING - bronze

1шт.
